How to open Logical Model? [message #637435] Sun, 17 May 2015 21:29 Go to next message
fluffycone
Messages: 27
Registered: June 2011
Junior Member

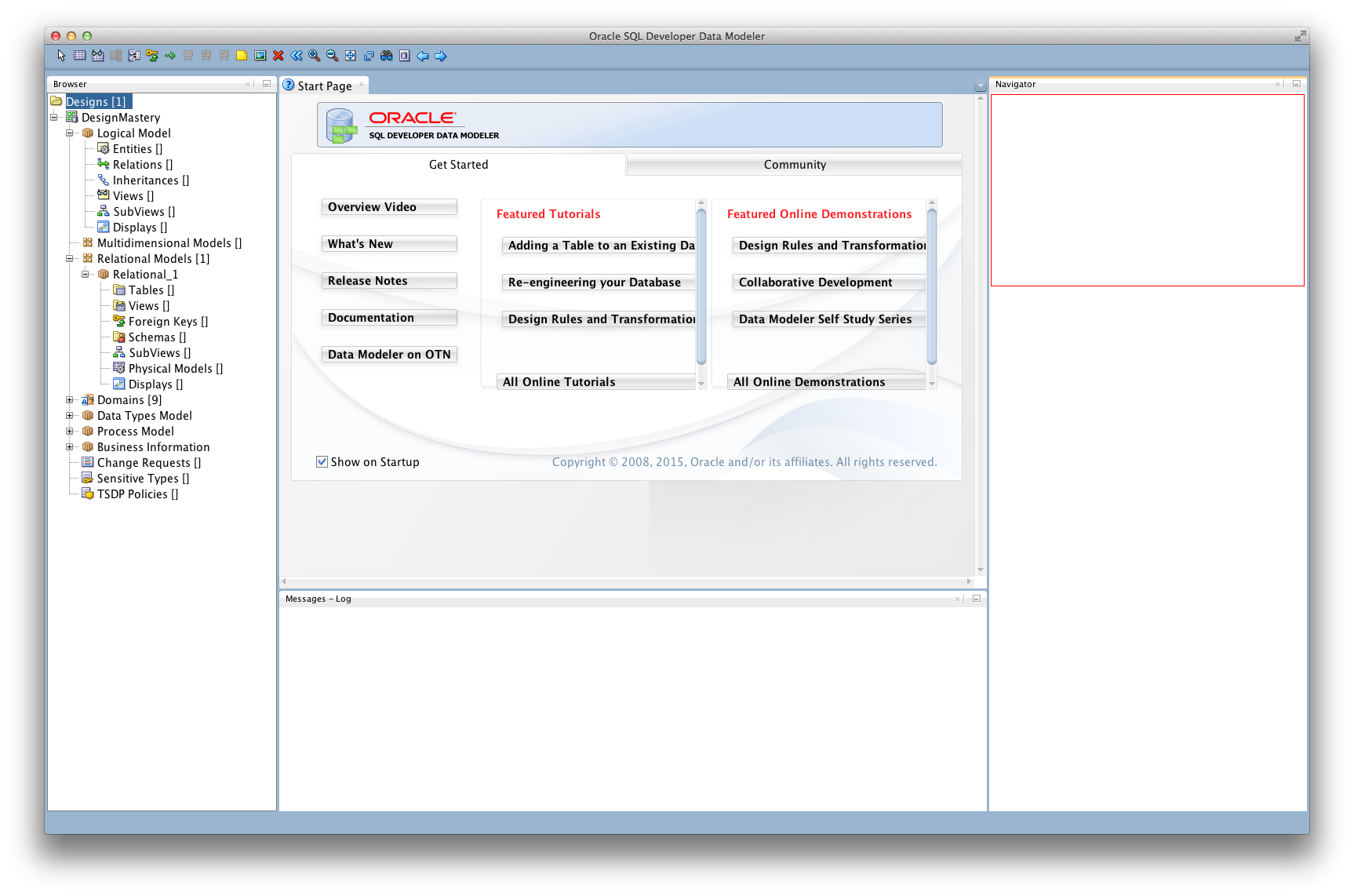

See the attached screenshot.

Java(TM) Platform 1.8.0_45
Oracle IDE 4.1.0.881
Versioning Support 4.1.0.881
.

I'm attempting to work along the tutorial at the following URL:
https://docs.oracle.com/cd/E15276_01/doc.20/e13677/tut_data_modeling.htm#CBAHGHGF

I have created the Domain as described in 2.1.1 Adding Domain.

Here is where I do not seem to be able to follow along:

2.1.2 Creating the Books Entity
The Books entity describes each book in the library. Create the Books entity as follows:
In the main area (right side) of the SQL Developer Data Modeler window, click the Logical tab.

What is the main area of the SQL Developer Modeler window?
And where is the Logical tab?

I have included a screenshot of the Data Modeler.

Thanks,
Re: How to open Logical Model? [message #637448 is a reply to message #637435] Mon, 18 May 2015 02:12 Go to previous messageGo to next message
Littlefoot
Messages: 21331
Registered: June 2005
Location: Croatia, Europe
Senior Member
Account Moderator
- In Browser, right-click "Logical Model"
- choose "Show"
- the "Logical" tab is now visible in the main area
- new buttons will appear; the second one is "New Entity" (the one you need next)
Re: How to open Logical Model? [message #637496 is a reply to message #637448] Mon, 18 May 2015 18:47 Go to previous message
fluffycone
Messages: 27
Registered: June 2011
Junior Member
Just discovered that the key combination for a right click on a Mac (Control-Click_ did not work. So I just attached a two button mouse and it worked.
Thanks Littlefoot, still helpful.
