sign_webutil.bat [message #343179]

Tue, 26 August 2008 09:40

dewdrops_ankur
Messages: 25
Registered: August 2008

Junior Member

Hi,

I'm currenting migrating one application from forms6i to 10g.
I have to add webutil.pll functionality in place of d2kwutil.pll.
I followed all the steps which was given in web_util.pdf which is provided by oracle.

When i'm signing frmwebutil.jar and jacob.jar me getting the following,i dont know where it is a error or warning or something else.....

C:\Oracle\v10120\forms\webutil_106\webutil>sign_webutil.bat C:\Oracle\v10120\forms\java\jacob.jar
Generating a self signing certificate for key=webutil2...
keytool error: java.lang.Exception: Key pair not generated, alias <webutil2> already exists.
There were warnings or errors while generating a self signing certificate. Please review them..
Backing up C:\Oracle\v10120\forms\java\jacob.jar as C:\Oracle\v10120\forms\java\jacob.jar.old...
1 file(s) copied.
Signing C:\Oracle\v10120\forms\java\jacob.jar using key=webutil2...
...successfully done.

Now when i try to run any form with webutil it given the following error

oracle.forms.webutil.file.filefunctions bean not found.
client_text_io.fopen will not work.

Please help i have to submit it after two days.

Thanks in advance!!!

Ankur

[Updated on: Tue, 26 August 2008 10:19]

Report message to a moderator

Re: sign_webutil.bat [message #343340 is a reply to message #343179]

Wed, 27 August 2008 00:22

mudabbir
Messages: 235
Registered: April 2006
Location: Kuwait

Senior Member

mudabbir.tungekar@gmail.com

Did you SUBCLASS the webutil.olb object to your form?

Report message to a moderator

Re: sign_webutil.bat [message #343409 is a reply to message #343340]

Wed, 27 August 2008 04:06

dewdrops_ankur
Messages: 25
Registered: August 2008

Junior Member

I copy the webutil.old.

In the demo they said to copy it.

Report message to a moderator

Re: sign_webutil.bat [message #343428 is a reply to message #343409]

Wed, 27 August 2008 04:56

mudabbir
Messages: 235
Registered: April 2006
Location: Kuwait

Senior Member

mudabbir.tungekar@gmail.com

You have to SUBCLASS the webutil.olb

Look here http://www.orafaq.com/forum/t/123769/84678/
Look at 1.jpg (Forms Builder)

[Updated on: Wed, 27 August 2008 04:57]

Report message to a moderator

Re: sign_webutil.bat [message #343435 is a reply to message #343428]

Wed, 27 August 2008 05:12

dewdrops_ankur
Messages: 25
Registered: August 2008

Junior Member

Thanks for your help.
I'll try with subclass and get back to you.

When im signing for certificate the following is shown
Me not able to get where it is error or what

C:\Oracle\v10120\forms\webutil_106\webutil>sign_webutil.bat C:\Oracle\v10120\forms\java\jacob.jar
Generating a self signing certificate for key=webutil2...
keytool error: java.lang.Exception: Key pair not generated, alias <webutil2> already exists.
There were warnings or errors while generating a self signing certificate. Please review them..
Backing up C:\Oracle\v10120\forms\java\jacob.jar as C:\Oracle\v10120\forms\java\jacob.jar.old...
1 file(s) copied.
Signing C:\Oracle\v10120\forms\java\jacob.jar using key=webutil2...
...successfully done.

Can you do me a favour,can you please tell me the steps for configuring webutil.

Thanks alot!!!

Report message to a moderator

Re: sign_webutil.bat [message #343437 is a reply to message #343435]

Wed, 27 August 2008 05:16

mudabbir
Messages: 235
Registered: April 2006
Location: Kuwait

Senior Member

mudabbir.tungekar@gmail.com

Follow the link carefully I sent in my last post. It will configure webutil for you.

Report message to a moderator

Re: sign_webutil.bat [message #343450 is a reply to message #343437]

Wed, 27 August 2008 05:37

dewdrops_ankur
Messages: 25
Registered: August 2008

Junior Member

I tried with subclass also same error,the error which was coming earlier.the error is below

oracle.forms.webutil.file.filefunctions bean not found.
client_text_io.fopen will not work.

and my jinitiator console is saying following thing
Oracle JInitiator: Version 1.3.1.22
Using JRE version 1.3.1.22-internal Java HotSpot(TM) Client VM
User home directory = C:\Documents and Settings\axfe

Proxy Configuration: Manual Configuration

Proxy: http=proxy:8080;https=proxy:8080;ftp=proxy:8080;gopher=proxy:8080

Proxy Overrides: *.sp.chevron.net,*.pk.chevron.net,*.chevronbrand.com,*.texaco.com,*.unocal.com,*.ptcpi.com,*.gulflubes.com,*.tengizchevroil.net,*.oro nite.com,*.chevron.com,*.chevron.net,*.chevrontexaco.com,*.chevrontexaco.net,*.knowledgeplanet.com,*.tengizchevroil.com,*.chevroncred itcard.com, <local>,

JAR cache enabled
Location: C:\Documents and Settings\axfe\Oracle Jar Cache
Maximum size: 50 MB
Compression level: 0

Thanks alot for your help!!!

[Updated on: Wed, 14 January 2015 03:30] by Moderator

Report message to a moderator

Re: sign_webutil.bat [message #343460 is a reply to message #343450]

Wed, 27 August 2008 06:19

mudabbir
Messages: 235
Registered: April 2006
Location: Kuwait

Senior Member

mudabbir.tungekar@gmail.com

Quote:

Loading http://us15107554.thp.chevrontexaco.net:8889/forms/java/frmall_jinit.jar from JAR cache

WHERE IS THE FRMWEBUTIL.JAR?

I say again.....

Follow the link carefully. It will configure webutil for you.

http://www.orafaq.com/forum/m/343457/84678/#msg_343457

Report message to a moderator

Re: sign_webutil.bat [message #343466 is a reply to message #343460]

Wed, 27 August 2008 06:37

dewdrops_ankur
Messages: 25
Registered: August 2008

Junior Member

Thanks alot!!!

i'll follow the link carefully and get back to you. Smile

Smile

Report message to a moderator

Re: sign_webutil.bat [message #343832 is a reply to message #343466]

Thu, 28 August 2008 05:41

dewdrops_ankur
Messages: 25
Registered: August 2008

Junior Member

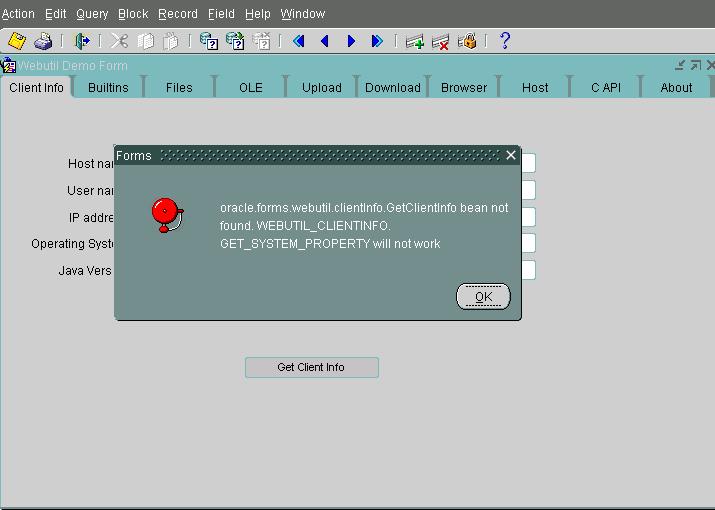

I followed the link carefully and tried to run the webutil demo but me getting bean error.
For more deatils please see the attachment.

thanks alot!!! Smile

Smile

Attachment: webutil error.JPG
(Size: 36.21KB, Downloaded 1746 times)

[Updated on: Thu, 28 August 2008 05:41]

Report message to a moderator

Re: sign_webutil.bat [message #343842 is a reply to message #343832]

Thu, 28 August 2008 06:00

mudabbir
Messages: 235
Registered: April 2006
Location: Kuwait

Senior Member

mudabbir.tungekar@gmail.com

Are you using the webutil functions in a PRE-FORM or WHEN-NEW-FORM-INSTANCE or ON-ERROR triggers?

Please post the JAVA Console readings

[Updated on: Thu, 28 August 2008 06:04]

Report message to a moderator

Re: sign_webutil.bat [message #343843 is a reply to message #343842]

Thu, 28 August 2008 06:02

dewdrops_ankur
Messages: 25
Registered: August 2008

Junior Member

I'm running the webutil demo provided by oracle.

Report message to a moderator

Re: sign_webutil.bat [message #343847 is a reply to message #343843]

Thu, 28 August 2008 06:04

mudabbir
Messages: 235
Registered: April 2006
Location: Kuwait

Senior Member

mudabbir.tungekar@gmail.com

Please post the JAVA Console Readings

Report message to a moderator

Re: sign_webutil.bat [message #343853 is a reply to message #343847]

Thu, 28 August 2008 06:15

dewdrops_ankur
Messages: 25
Registered: August 2008

Junior Member

Oracle JInitiator: Version 1.3.1.22
Using JRE version 1.3.1.22-internal Java HotSpot(TM) Client VM
User home directory = C:\Documents and Settings\axfe

Proxy Configuration: Manual Configuration

Proxy: http=proxy:8080;https=proxy:8080;ftp=proxy:8080;gopher=proxy:8080

Proxy Overrides: *.sp.chevron.net,*.pk.chevron.net,*.chevronbrand.com,*.texaco.com,*.unocal.com,*.ptcpi.com,*.gulflubes.com,*.tengizchevroil.net,*.oro nite.com,*.chevron.com,*.chevron.net,*.chevrontexaco.com,*.chevrontexaco.net,*.knowledgeplanet.com,*.tengizchevroil.com,*.chevroncred itcard.com, <local>,

JAR cache enabled
Location: C:\Documents and Settings\axfe\Oracle Jar Cache
Maximum size: 50 MB
Compression level: 0

[Updated on: Wed, 14 January 2015 03:30] by Moderator

Report message to a moderator

Re: sign_webutil.bat [message #343859 is a reply to message #343853]

Thu, 28 August 2008 06:30

mudabbir
Messages: 235
Registered: April 2006
Location: Kuwait

Senior Member

mudabbir.tungekar@gmail.com

You have not gone through the link properly....

Java console should show you readings of FRMWEBUTIL.JAR file loading......

Loading http://us15107554.thp.chevrontexaco.net:8889/forms/java/frmall_jinit.jar from JAR cache
Loading http://us15107554.thp.chevrontexaco.net:8889/forms/java/frmwebutil.jar from JAR cache
.
.
.
.
.
Check you formsweb.cfg file for
archive_jini= frmall_jinit.jar,frmwebutil.jar,jacob.jar

I am sure you dont have these settings.

Report message to a moderator

Re: sign_webutil.bat [message #343868 is a reply to message #343859]

Thu, 28 August 2008 06:45

dewdrops_ankur
Messages: 25
Registered: August 2008

Junior Member

Thanks alot!!!!!!!!!!!
Thank you
Yes you are right i missed that thing.

thanks alot !!!!!!!!!!!

Can you please share your mail id.
Mine is ankurarora11@gmail.com and dewdrops_ankur@yahoo.co.in

thanks once again.
You done know how much thankfull i'm to you Smile

Smile

Report message to a moderator

Re: sign_webutil.bat [message #344353 is a reply to message #343868]

Fri, 29 August 2008 08:54

dewdrops_ankur
Messages: 25
Registered: August 2008

Junior Member

Thanks alot for your support!!!

I'm migrating from 6i application of forms 10g.
in forms 6i they were using
WIN_API_ENVIRONMENT.READ_INI_FILE('C:\myfiles\pcexec.ini','PCEXEC','EDITOR',FALSE);
if val is null then
val := 'NOTEPAD';
end if;
cmd := rtrim(val)||' '||flnm;
CLIENT_HOST(cmd);

to display file on the screen so that it can be printed.
Now same thing i have to implement with the webutil.
Please guide me.

Thanks
Ankur

Report message to a moderator

Re: sign_webutil.bat [message #344357 is a reply to message #343179]

Fri, 29 August 2008 09:12

Kaeluan
Messages: 179
Registered: May 2005
Location: Montreal, Quebec

Senior Member

I suggest you using this command

Client_Host('cmd /c RunDLL32.EXE shell32.dll,ShellExec_RunDLL C:\myfiles\pcexec.ini');

This will automatically open the file with the program associate in windows. If no program are associate with the file extension it will automatically prompt you to select the application to open it.

Report message to a moderator

Re: sign_webutil.bat [message #344362 is a reply to message #344357]

Fri, 29 August 2008 09:26

dewdrops_ankur
Messages: 25
Registered: August 2008

Junior Member

Thanks alot for your help Smile

Smile

I dont want to use 'C:\myfiles\pcexec.ini' in the code.
i want my code to be independent of this.

Report message to a moderator

Re: sign_webutil.bat [message #344363 is a reply to message #343179]

Fri, 29 August 2008 09:28

Kaeluan
Messages: 179
Registered: May 2005
Location: Montreal, Quebec

Senior Member

pcexe.ini was only an exemple of file name

Client_Host('cmd /c RunDLL32.EXE shell32.dll,ShellExec_RunDLL c:\your_file_name.txt');

Report message to a moderator

Re: sign_webutil.bat [message #344366 is a reply to message #344363]

Fri, 29 August 2008 09:37

dewdrops_ankur
Messages: 25
Registered: August 2008

Junior Member

One black screen is coming and then disappering.
i'm not able to see my file.

Report message to a moderator

Re: sign_webutil.bat [message #344373 is a reply to message #343179]

Fri, 29 August 2008 09:57

Kaeluan
Messages: 179
Registered: May 2005
Location: Montreal, Quebec

Senior Member

Open a dos window and type

RunDLL32.EXE shell32.dll,ShellExec_RunDLL c:\your_file_name.txt

to see if you get any error message.

What version of Windows you using?

Report message to a moderator

Re: sign_webutil.bat [message #344377 is a reply to message #344363]

Fri, 29 August 2008 10:02

dewdrops_ankur
Messages: 25
Registered: August 2008

Junior Member

thnaks alot its working. Smile

Smile

Report message to a moderator

Re: sign_webutil.bat [message #485002 is a reply to message #344377]

Sat, 04 December 2010 23:15

NaeemAlsaadi
Messages: 20
Registered: November 2010
Location: Oman

Junior Member

hi how i can use Client_Host('cmd /c RunDLL32.EXE shell32.dll,ShellExec_RunDLL c:\your_file_name.txt');
in form 6i please help

Report message to a moderator

Re: sign_webutil.bat [message #485055 is a reply to message #343179]

Sun, 05 December 2010 19:19

Kaeluan
Messages: 179
Registered: May 2005
Location: Montreal, Quebec

Senior Member

If you work in client/server replace client_host command by host and it should work.
If you work with WebForms you need to install webutil library to make it work

Report message to a moderator

Re: sign_webutil.bat [message #630996 is a reply to message #485055]

Wed, 07 January 2015 09:13

irfankundi786@yahoo.com
Messages: 269
Registered: February 2009
Location: pakistan

Senior Member

hi mudabbir...
i have configure the webutil and then test the webutil_demo form ..when the form load it give in java console this like

Java Plug-in 1.6.0_45
Using JRE version 1.6.0_45-b06 Java HotSpot(TM) Client VM
User home directory = C:\Documents and Settings\Administrator
----------------------------------------------------
c: clear console window
f: finalize objects on finalization queue
g: garbage collect
h: display this help message
l: dump classloader list
m: print memory usage
o: trigger logging
q: hide console
r: reload policy configuration
s: dump system and deployment properties
t: dump thread list
v: dump thread stack
x: clear classloader cache
0-5: set trace level to <n>
----------------------------------------------------

load: class oracle.forms.webutil.common.RegisterWebUtil not found.
java.lang.ClassNotFoundException: oracle.forms.webutil.common.RegisterWebUtil
at sun.plugin2.applet.Applet2ClassLoader.findClass(Unknown Source)
at sun.plugin2.applet.Plugin2ClassLoader.loadClass0(Unknown Source)
at sun.plugin2.applet.Plugin2ClassLoader.loadClass(Unknown Source)
at sun.plugin2.applet.Plugin2ClassLoader.loadClass(Unknown Source)
at java.lang.ClassLoader.loadClass(Unknown Source)
at sun.plugin2.applet.Plugin2ClassLoader.loadCode(Unknown Source)
at sun.plugin2.applet.Plugin2Manager.createApplet(Unknown Source)
at sun.plugin2.applet.Plugin2Manager$AppletExecutionRunnable.run(Unknown Source)
at java.lang.Thread.run(Unknown Source)
Exception: java.lang.ClassNotFoundException: oracle.forms.webutil.common.RegisterWebUtil
proxyHost=null
proxyPort=0
connectMode=HTTP, native.
Forms Applet version is : 10.1.2.0

Report message to a moderator

Re: sign_webutil.bat [message #631470 is a reply to message #630996]

Wed, 14 January 2015 02:55

wency
Messages: 450
Registered: April 2006
Location: Philippines

Senior Member

read here

http://www.orafaq.com/forum/t/157981/

Report message to a moderator

Previous Topic:	how to print text in center while generating .csv file using oracle forms
Next Topic:	oracle.form.webutil.ole.olefunction will not found

Goto Forum:

-=] Back to Top [=-

[ Syndicate this forum (XML) ] [

]

Current Time: Thu Apr 25 20:30:11 CDT 2024
