Home » Server Options » RAC & Failsafe » RAC Installation Error (oracle 11g,windows server 2008 r2 64bit,vmware workstation 10)
RAC Installation Error [message #648228] Fri, 19 February 2016 00:50 Go to next message
hcdba
Messages: 34
Registered: March 2015
Member
hello,


I am very new to rac installation.So i refer some of the documents and try to install oracle rac 11g on vmware workstation 10 on windows server 2008 R2 os.

i check up to ip configuration all Prerequisite task are well fine.

i also run script runcluvfy and its passed in all configuration but when final installation done on grid infrastructure one error occured.here i attached logfile please guide me well.

Thank you in advance.

[Updated on: Fri, 19 February 2016 00:51]

Report message to a moderator

Re: RAC Installation Error [message #648257 is a reply to message #648228] Fri, 19 February 2016 07:57 Go to previous messageGo to next message
John Watson
Messages: 7148
Registered: January 2010
Location: Global Village
Senior Member
What's the error?
Re: RAC Installation Error [message #648306 is a reply to message #648257] Fri, 19 February 2016 23:42 Go to previous messageGo to next message
hcdba
Messages: 34
Registered: March 2015
Member

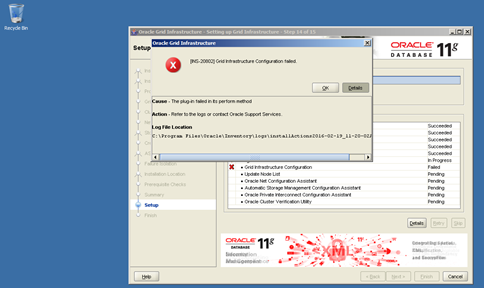

here i attached screen shot of that error.
  • Attachment: Untitled.png
    (Size: 56.82KB, Downloaded 82 times)
Re: RAC Installation Error [message #648319 is a reply to message #648306] Sat, 20 February 2016 08:26 Go to previous messageGo to next message
BlackSwan
Messages: 25716
Registered: January 2009
Location: SoCal
Senior Member
Please read and follow the forum guidelines, to enable us to help you:
OraFAQ Forum Guide
How to use {code} tags and make your code easier to read
Re: RAC Installation Error [message #648322 is a reply to message #648306] Sat, 20 February 2016 10:27 Go to previous messageGo to next message
John Watson
Messages: 7148
Registered: January 2010
Location: Global Village
Senior Member
How about some more information? For instance:

What was the output of the CVU ? What release of Grid Infrastructure (do not say "11g". Say, for example, "11.2.0.4")? Is your software 32bit or 64 bit? What about your Windows? What is your network configuration? What is the storage?

Re: RAC Installation Error [message #648361 is a reply to message #648322] Mon, 22 February 2016 04:04 Go to previous messageGo to next message
hcdba
Messages: 34
Registered: March 2015
Member
-here my oracle database version is 11.2.0.1.0 64bit
-my os is windows server 2008 R2 64bit service pack 1


-i add 4 disk which 2 of them 10gb and other 2 is 5 gb and used external redundancy

- i added 2 network adapter in oracle vm virtualbox which is bridged .

-here i attached my cvu output.



Re: RAC Installation Error [message #648363 is a reply to message #648361] Mon, 22 February 2016 04:21 Go to previous messageGo to next message
John Watson
Messages: 7148
Registered: January 2010
Location: Global Village
Senior Member
I would not even try to fix an 11.2.0.1 installation. There were significant changes between 11.2.0.1 and 11.2.0.2. If you have a support contract, you should use 11.2.0.4. If you do not have a support contract (ie, this is just for your own learning) then use 12.1.0.2.

Your network looks OK, but you have said nothing about storage. Is it shared? If so, how?
Re: RAC Installation Error [message #648392 is a reply to message #648363] Mon, 22 February 2016 23:11 Go to previous messageGo to next message
hcdba
Messages: 34
Registered: March 2015
Member
yes my storage is shared storage.
Re: RAC Installation Error [message #648404 is a reply to message #648392] Tue, 23 February 2016 01:33 Go to previous message
John Watson
Messages: 7148
Registered: January 2010
Location: Global Village
Senior Member
hcdba wrote on Tue, 23 February 2016 05:11
yes my storage is shared storage.

Prove it. You may find that

runcluvfy comp ssa

is useful, as well as several other cluvfy comp commands to check your environment.
