proceed registerSchema to a XSD, element becomes unwanted XMLTYPE [message #584811] Fri, 17 May 2013 17:29
marder333
Messages: 1
Registered: May 2013
Location: Bolligen
Junior Member
Hi All

An element of a XSD-Object "OrganisationsEinheit" has the defined type "Orgeinheit".

Definition within the XSD under the Object SyrUser:
<xs:element name="OrganisationsEinheit" type="Orgeinheit_Typ" minOccurs="0"/>

After proceeding
xdb.dbms_xmlschema.registerSchema(schemaurl => 'XSD-Name'
                                    ,schemadoc => bfilename('Schema','XSD-Name')
                                    ,local => TRUE
                                    ,genTypes => TRUE
                                    ,genbean => FALSE
                                    ,genTables => FALSE);

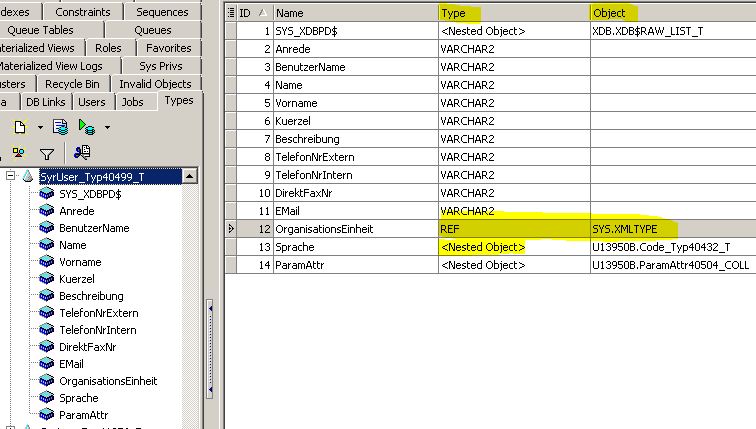

the type of this element receive the unwanted type REF and Object XMLTYPE instead of the type <Nested Object> and Object "Orgeinheit".

Has anybody an idea why only some Objects receive the Object XMLTYPE and other receive the Object as it is in the XSD?

If I make a small XSD with only the Object SyrUser and the associated objects/types- all works fine and I get the Object as I need for later export. But the same Object in the bigger XSD goes wrong.

Thank you very much
marder333
./fa/10803/0/


[mod-edit: code tags added and image inserted into messaged body by bb]
  • Attachment: XMLTYPE.JPG
    (Size: 79.15KB, Downloaded 145 times)

[Updated on: Sat, 18 May 2013 04:28]
