Join Rittman Mead at the 2017 BIWA Summit!

Rittman Mead Consulting - Mon, 2017-01-30 15:46
Join Rittman Mead at the 2017 BIWA Summit!

We invite you to come join us at the annual 2017 BIWA Summit.

Join Rittman Mead at the 2017 BIWA Summit!

This year we are proud to announce that Robin Moffatt, Head of Research and Development, will be presenting on:

Analysing the Panama Papers with Oracle Big Data Spatial and Graph

January 31, 2017 | 3:45 pm – 4:15 pm | Room 103

Oracle Big Data Spatial and Graph enables the analysis of datasets beyond that of standard relational analytics commonly used. Through Graph technology relationships can be identified that may not otherwise have been. This has practical uses including in product recommendations, social network analysis, and fraud detection. In this presentation we will see a practical demonstration of Oracle Big Data Spatial and Graph to load and analyse the “Panama Papers” dataset. Graph algorithms will be utilised to identify key actors and organisations within the data, and patterns of relationships shown. This practical example of using the tool will give attendees a clear idea of the functionality of the tool and how it could be used within their own organisation. If Oracle Database 12cR2 on-premise is available by the time of this presentation, then its new property graph capabilities will also be covered here. The presentation will be based on a paper published on OTN: https://community.oracle.com/docs/DOC-1006400


Kafka’s Role in Implementing Oracle’s Big Data Reference Architecture on the Big Data Appliance

February 1, 2017 | 2:20 pm – 3:10 pm | Room 102

Big Data … Big Mess? Everyone wants Big Data, but without a good platform design up front there is the risk of a mess of point-to-point feeds. The solution to this is Apache Kafka, which enables stream or batch consumption of the data by multiple consumers. Implemented as part of Oracle’s Big Data Architecture on the Big Data Appliance, it acts as a data bus for the enterprise to both the data reservoir and discovery lab. This presentation will introduce the basics of Kafka, and explain how it fits within the Big Data Architecture. We’ll then see it used with Oracle GoldenGate to stream data into the data reservoir, as well as ad hoc population of discovery lab environments and microservices such as Flume, HBase, and Elasticsearch.

(Still) No Silver Bullets: OBIEE 12c Performance in the Real World

February 2, 2017 | 1:30 pm – 2:20 pm | Room 203

Are you involved in the design and development of OBIEE systems and want to know the best way to go about ensuring good performance? Maybe you’ve an existing OBIEE system with performance “challenges” that you need to diagnose? This presentation looks at the practical elements of diagnosing the causes of performance issues in OBIEE, and discusses good practices to observe when developing new systems. It includes discussion of OBIEE 12c and with additional emphasis on analysis of Usage Tracking data for the accurate profiling and diagnosis of issues. Why this would appeal to the audience: – Method-R time profiling technique applied to the OBIEE nqquery.log – Large number of the community use OBIEE, many will have their own performance horror stories; fewer will have done a deep dive into analysing the time profile of long-running requests – Performance “right practices” will help those less familiar with performant OBIEE designs, and may prompt debate from those more experienced. As presented previously at OOW, OUGF, UKOUG, OUG Scotland, and POUG. Newly updated for OBIEE 12c. * Video: http://ritt.md/silver-bullets-video* Slides: http://ritt.md/silver-bullets-slides

Categories: BI & Warehousing

Schema-less or Schema On Demand

Dylan's BI Notes - Sun, 2017-01-29 20:53
I am trying to define what are the criteria for a schema-less, or a schema on demand data storage. In relational database, we use DDL, data definition language, to define schema. We have to create table first, before we can insert data into a table.  When we update data, we update the data by mentioning the […]
Categories: BI & Warehousing

Uncommonly Common

Dylan's BI Notes - Thu, 2017-01-26 17:41
An interesting concept. Significant Terms Aggregation – Elastic Search
Categories: BI & Warehousing

What's new in Training in 2017?

Rittman Mead Consulting - Thu, 2017-01-26 05:30
2016 - Thank you for a great year!

Rittman Mead would like to thank everyone that attended or showed an interest in our Training courses in 2016. Since we started back in 2007, Training has been a mainstay of our service offerings.

My personal opinion is that Q3 & Q4 saw the emergence of OBIEE 12c being properly adopted within the marketplace. It made sense for companies to wait for some of the bugs from earlier releases to be ironed out as well as waiting for clarity around the release of things such as Data Visualization Desktop.

It meant that we started to really see numbers pick up in our OBIEE 12c bootcamp. For the first time we’ve really tried to stress the fact that different parts of the course can be suitable for different people based on their everyday use of the product. This has led to more business focused end-users of OBIEE attending our training.

We love travelling and 2016 yet again took us to some amazing places to deliver courses to a variety of different clients. Locations we visited included South Africa, India, Sweden, Jamaica, Bulgaria and Ireland to name a few.

Finally we were really proud to release our new On Demand Training platform in December 2016 with our first online course, OBIEE 12c Front End Development & Data Visualization.

What’s new in 2017

We’re looking forward to another busy year in 2017 and it’s certainly already underway!!

Our public training schedule has been published with a number of courses available in OBIEE & ODI.
Here you can find the course dates for UK & Europe

And here you can find the courses available in the US

2017 will also see the release of some new courses including:

Advanced Analytics and Oracle R

We are seeing more and more investment in Predictive Analytics projects from companies looking to make as much value out of their data as possible.
Our 3 day course will teach you about the tools available & the techniques required to start or continue your Predictive Analytics journey.

From acquiring to tidying and transforming data, moving into the types of Predictive Models and how to the deploy them, our course will strengthen your knowledge and teach you valuable techniques.

The Advanced Analytics & Oracle R course will be available from March 2017, please get in touch for more details.

ODI 12c Bootcamp

2017 will also see the refresh of our ODI 12c Bootcamp. There are some very handy new features in the latest version such as the Big Data Integration and also Lifecycle Management. We'll also be including some lessons on advanced techniques such as Groovy Scripting in ODI.
We’re looking forward to teaching these extra modules soon.

The new course will be released in Q2 2017.

On Demand Training

We will be adding more courses to our On Demand Training platform throughout 2017. We recognise the value of classroom instructor led training however we also understand that people have busy lives and that sometimes flexibility to learn at your own pace is important.

Our On Demand Training platform provides this opportunity whether you’re trying to reaffirm your learning post-classroom training or looking to learn a new skill for the first time.

Courses that will be added online in 2017 include OBIEE 12c RPD Modeling, OBIEE 12c Systems Management & Performance, OBIEE 11g Front End Development, ODI 12c Bootcamp, ODI 11g for BI Apps and many more….

For more information and updates, please head to our webpage

Categories: BI & Warehousing

Rittman Mead at BIWA Summit 2017

Rittman Mead Consulting - Wed, 2017-01-25 08:00

I'm excited to be attending my first ever BIWA Summit next week (which will take me to Oracle HQ at Redwood Shores for the first time too!). This three day conference is one of the major dates in the conference calendar for all Oracle Analytics folk, and I'm proud to have opportunity to present three papers:

  • Analysing the Panama Papers with Oracle Big Data Spatial and Graph

    31st January, Room 103, 15:45

    Based on an article I wrote recently, I'll be talking about how to use property graph analysis through Oracle's Big Data Spatial and Graph tool to examine and analyse the relationships in the Panama Papers dataset. Complex relationships that would be all but impossible to query in relational SQL can be uncovered using built in algorithms as well as with Property Graph Query Language (PGQL). I'm using my new favourite tool, interactive notebooks, to demonstrate PGQL as well as the PGX interface.

  • Kafka's Role in Implementing Oracle's Big Data Reference Architecture on the Big Data Appliance

    1st February, Room 102, 14:20

    Apache Kafka is rapidly becoming accepted as a de-facto means of building a data pipeline through a business, ensuring availability of data to and from all systems that need it. In this presentation I go in to the detail of what Apache Kafka is, the problems that it solves - and then put this in context of the Oracle Information Management and Big Data Reference Architecture.

  • (Still) No Silver Bullets : OBIEE 12c Performance in the Real World

    2nd February, Room 203, 13:30

    One of my favourite presentations to deliver, this dives into what you should - and shouldn't - do when building an OBIEE system. It explains how to troubleshoot performance issues methodically - and not a best practice in sight!

There's a full listing of all sessions here, with a PDF to download here.

You can follow the conference proceedings on twitter with the hashtag #BIWASummit, and I'll be tweeting about it to as @rmoff. The presentations that I'm delivering will be available to download on speakerdeck.

Categories: BI & Warehousing

Elastic Stack

Dylan's BI Notes - Wed, 2017-01-25 00:13
This post comes from notes I took while learning Elastic Stack. ELK is a combination of three tools: Elastic Search Logstash Kibana When ELK is changed to Elastic Stack, there is a forth tool: Beat There are a lot of information on the net.  I do not want to repeat anything.  I will just write my impressions. […]
Categories: BI & Warehousing

Race Against the Machine - Skilling in the Name

Rittman Mead Consulting - Fri, 2017-01-20 06:36

Firstly apologies for the awful title. We’ll see by the end of this post whether the pun works!

At Rittman Mead we see the Data & Analytics market and indeed the broader technology market continually changing.

Investment in technology to move organisations ahead of their competitors seems higher than ever and gone are the days that large IT projects are seen as purely a huge cost to the business.

They are getting genuinely measurable ROI now.

We’ve also observed an ever changing landscape in terms of the new features and functionalities of tools. It makes us wonder if we’re in a situation where these systems are going to end up way ahead of a person's ability to use it to it’s best potential.

Take the Hadoop Ecosystem for example. Every large organisation in the world is starting to take Big Data seriously, however barely anyone had even seen the different tools surrounding it until a few years ago.

That’s why we believe that it’s everyone’s responsibility to put Learning & Education towards the highest end of their priority lists at the start of each year.

  • That goes for course developers & deliverers such as Rittman Mead, Oracle and Cloudera to name a few. The onus is on us to provide the necessary learning opportunities and courses.

  • It also goes for organisations who must invest in their staff through training and education. The benefits to companies are huge. It shows that level of commitment to your staff which can lower attrition and increase productivity.

  • And it certainly goes for anyone in the technology space to constantly pick up new skills and experiences that will help them for years to come.

It would be mad for me to go out and buy a TaylorMade M1 golf club for £250 before I’ve learnt how to hit a golf ball straight (I really struggle with a slice!).

In the same respect, a company should never invest millions on a system and then fail to train it’s teams how to use it.

We’ll always be racing against machine but with the right learning perspective in place we can definitely all keep up.

Look out for our post next week when we review our Training in 2016 and take a look at what's on the horizon in 2017.

Categories: BI & Warehousing

Time Series Visualisations: Kibana or Grafana?

Rittman Mead Consulting - Thu, 2017-01-19 05:49

Grafana has rapidly become one of the de-facto “DevOps” tools for real time monitoring dashboards of time series metrics. In addition to its powerful visualisations, Grafana is not tied to a particular stack or vendor, and supports multiple backend data sources including InfluxDB, Graphite, Elasticsearch and many others which can be added via plugins.

Another similar tool, Kibana is the data visualisation front end for the Elastic Stack, complementing the rest of the stack which includes Beats, Logstash (ingest) and Elasticsearch itself (storage). With the version 5.x release of the Elastic Stack, Kibana now includes Timelion for interactive time series charts.

Here at Rittman Mead we are big fans of both tools, and have written about them over the years (see 1, 2, 3). Our industry-leading Performance Analytics solution for OBIEE is built on top of these tools, and takes advantage of the time series features to provide interactive web-based dashboards presenting a “full stack" view of the important metrics relating to OBIEE's performance.

To give you an idea of what we’ve built, here is a sample dashboard from our Performance Analytics tool. We use both Grafana and Kibana, to present different views of data. The dense dashboards of time series metrics work brilliantly in Grafana:

To enable the user to view and analyse performance data across multiple dimensions we use Kibana, which does a stirling job:

With the recent release of Timelion - a time series visualisation plugin for Kibana - out of beta and into the big time, we wanted to ensure we were still using the right tool for the right job. Did we still need Grafana in our stack for visualisation of time series metrics, or could Timelion fill that gap now, and enable us to streamline our platform’s toolset?

In this article we’ll see how Timelion and Grafana stack up against each other. The intention is not to define which is “best” (a pointless exercise), nor create an unintelligible grid of down-in-the-weeds features that each may or may not support, but to see how the two tools compared in real-world usage, side by side. Which makes it easier to build charts? Which produces a nicer-looking dashboard at the end of it? Which has the best UI and UX for the end user reading and analysing the data? What limitations -if any- are there on data sources and functionality in analysing that data? And ultimately, can we unify our product’s front end on a single one of these tools?

Introduction to Timelion

Since version 5 of Kibana, Timelion (pronounced "Timeline") has been included as part of the default installation. Charts are defined using a bespoke query language, which specifies both the source of the data, functions to apply to it, and how it is presented. The query is specified in a textbox in the Timelion interface. In this simple chart here we’re using the expression .es(*) to show the total number of documents in Elasticsearch, over time:

Every Timelion expression starts with a data source function and continues with a chain of functions that are connected with a dot. Over 20 functions are provided, across three groups:

  1. Data sources - the default is Elasticsearch, and other APIs such as World Bank and Quandl are also available.
    For example in the graph above, the default expression .es(*) (similar to .elasticsearch(*)) shows a count of all documents in Elasticsearch. You can specify details of the Elasticsearch index, mappings and metrics here too, as well as filters.

  2. Data manipulations ranging from simple arithmetic to moving averages, cumulative sums and derivatives
    For example, adding a moving average to the data is as simple as including the function to the end of the expression: .es(*).movingaverage(12)

  3. Themes and styles of the visual elements including bar/point/lines, labels, title and legends. The graph below shows the number of running queries by time extracted from the active session history data in the Oracle database. .es(index=ash*).lines(1,fill=1).title('Running Queries').legend(none).label(false)

With regards to the available documentation and guides for the developers, the main documentation for Timelion is somewhat sparse. For details of each function you can refer to the documentation on github. Compared to the rest of the excellent Elastic documentation, this is surprising and hopefully now that Timelion is part of the core product its documentation will be brought up to parity - full explanations of features and functions along with examples of usage.

On the positive side, the query builder text box supports auto-complete of functions and their arguments, and the Timelion interface provides online help too. A downside to this minimalist Timelion page is the size of the expression textbox. As you will read more in this post, it wouldn’t take long before you need to add more than one metric and a few styles to a visualisation which means having too many words in the textbox that can’t be seen, scrolled and edited easily:

If you are a beginner, to avoid the confusion over typos and errors, try building the expressions step by step and add functions gradually. The blog here nicely explains how to gradually create Timelion expressions.

Of special note in the data manipulation functions that Timelion provides are the statistical analysis ones:

  • .trend() : add a trendline using a specified regression algorithm to your graph
  • .holt(): an early version of this function, which samples the beginning of a series and use it to forecast what should happen via several optional parameters.

These are useful for our performance monitoring dashboards, enabling us to show things such as the point at which you would run out of memory/disk space if you continued to consume resources at your current rate.

Related to this concept is Prelert, which Elastic acquired next year and is expected to be part of a future X-Pack release. Whilst dashboard-based analysis is useful, once a clear pattern on which we want to alert is identified we can bring in Watcher to provide real time notifications to pager systems etc.

Introduction to Grafana

Grafana is an open source feature rich dashboard and graph editor that is rapidly becoming accepted as one of the best time-series metric visualisation tools available. Grafana has gained its popularity thanks to its simplicity, ease of use and snazzy look and feel that attracts many users. You can read more about Grafana in an earlier article that we wrote on the Rittman Mead blog here. Here is the kind of dashboard you can easily build with Grafana:

Most of the configurations in Grafana are done via a comprehensive graph editor interface:

In the Grafana editor queries are generally built entirely through the GUI. Manually specified queries are used in cases such as accessing advanced functionality, and for specifying Lucene queries for in order to access data held in Elasticsearch. In terms of support for Elasticsearch, the latest version of Grafana at the time of writing this post (v4.1.1) supports both Elasticsearch v2 and v5. From my time spent working with Grafana 4.1.1 and Elasticsearch v5 I haven’t found it to be as stable as the long-standing data sources such as InfluxDB and Graphite (or even Elasticsearch v2). As an example, if a chart is configured incorrectly (for example settings for null values), Grafana is not as intuitive in returning no results or throw a descriptive error explaining the issue; instead the graph seems locked and the only possible solution for this behaviour seems to be deleting the chart and recreating it from scratch.

As well as data sources the graph editor includes settings covering display styles such as titles, templates, axis and legends.

A interesting new addition to the Grafana family is the alerting engine which allows users to attach rules to the dashboard panels. Once dashboards are saved Grafana will extract the alert rules into a separate alert rule storage and schedule them for evaluation.

Side-by-Side : Presenting the Data

On the face of it, the output from Grafana and Timelion can be remarkably similar:

Grafana on the right and Timelion is the left graph

However, there are a few differences between the two tools that are worth digging into here. They are mainly on the display configuration part and simplicity of the user experience.

As mentioned, Grafana’s chart editor has a clear interface over the multitude of options available for refining the presentation of the data.

Timelion also supports chart formatting, but with fewer options than Grafana. It also depends on the user concatenating the correct functions onto the data query expression as we saw above. For example to add a graph that has a “Running Queries” title, a legend on the top right of the plot, not labeled axes and data shown with a 1px width line, you would need to hand-code the this expression: .lines(1,fill=1).title('Running Queries').legend(ne).label(false)

Grafana offers significantly greater flexibility in the formatting of the chart. One example is displaying metrics of different units such as time, currency and data. Grafana can automatically scale axes based on the units (bytes -> MB -> GB). The following Grafana graph shows disk usage from our monitored application stored in Elasticsearch. The disk usage metric on the Y axis is in Kilobytes, which Grafana has automagically scaled to the appropriate magnitude (MiB) in the labelling:

The same could be done manually in Timelion by specifying the appropriate conversion, but this is a hardcoded option compared to Grafana’s dynamic one, and even then wouldn’t have the varying labeling that Grafana does above (KiB initially, switching to MiB subsequently)

Grafana also supports the rendering of negative values on the Y axis, which is just not possible in Timelion. As well as genuinely negative data values (for example, temperature recordings below zero degrees), using transform feature of Grafana it is possible to invert particular series so as to aid the comprehension of the data as seen here:

Another nice feature that Grafana has - and unfortunately Timelion doesn’t - is the ability to show metric values in the legend itself. It’s a great way to see key values at a glance, without requiring a separate table or the user to hover over the data points.

Side-by-Side : Interacting with the Data

Grafana and Kibana are also different in terms of the level and ease with which it is possible to interact with the charted data. Both Kibana and Grafana support the drag-select of time periods on a chart to zoom into detail, with the rest of the charts on the same dashboard updating to show the same time period too. However, Kibana is much more feature-rich in this area. As a front end to Elasticsearch it supports ad-hoc text search of your data. It also allows users to automatically drill down into data, by clicking on a value in a chart to show details just for that. In the OBIEE monitoring dashboard below (built in Kibana), Active Session History data is filtered for the session_states in “Waiting” and “On CPU” - this filter was created by the user simply by clicking on the data points in one of the charts, and can be toggled dynamically from the same interface.

This interactivity is supported by Timelion too. The es() datasource function includes an argument called “kibana”. This argument defines whether the visualisation should follow the filters applied to the rest of the Kibana dashboard or not, for example:
.es(index=dms_*,metric='avg:obips1-Current_Disk_Usage',fit='nearest',kibana='true')

Whilst it is possible to specify Elasticsearch Lucene queries in Grafana and use term filters in the editor, these are local to the graph. With some use of variables it can be possible to enable a degree of global filtering on a single Grafana dashboard but this is a bespoke solution per-dashboard, rather than the out-of-the-box functionality that Kibana provides.

Grafana does enable you to toggle the display of data in a chart, by clicking on the measure label in the legend, seen above.

Conclusion

Comparing Kibana and Timelion to Grafana, it is true that they do a similar job displaying time series metrics - with pros and cons on each side.

Grafana’s graph editor offers an amazing interface with regards to the options available for refining the presentation of the data. Grafana is not only an straightforward development tool but also adds a huge amount of value to the resulting dashboards making them easier to read and analyse by the end users

On other hand, Timelion is just one of many visualisations that Kibana provides (including Tile Map and Tag Cloud), meaning that dashboards can be built which are less dense with numbers and time series but information is shown through variety of visualisations. Unfortunately Timelion and its expression editor at its current version seem slightly immature and relatively limited. A few more additional display options plus a nicer editor would put Timelion in a better position in comparison.

So, for now, we’ll be sticking with our dual approach of both Grafana and Kibana. Grafana provides our pure time-series metric dashboards, with the ease-of-building being one of the key factors, along with the rich formatting capabilities and its support for a data sources rather than Elasticsearch. Kibana does an unbeatable job of dashboards enabling rich exploration of metrics across dimensions, rendered in a greater number of possible visualisation forms. Timelion is a great first step, but ultimately just can’t compete with Grafana.

This is a fast-moving area of tool development, and you can bet that Grafana and Kibana are going to continue developing at a rate of knots - which as users and developers is great news!

Categories: BI & Warehousing

HR Reporting

Dylan's BI Notes - Mon, 2017-01-16 10:05
HR is an important business function in any company.  It supports business growth.  It also satisfies the compliance requirements.  Reports are required for supporting the HR functions. Typical HR Reporting Requirements HR reports are surrounding the HR function:  Human Resource Planning, Recruitment and Selection, Orientation and Training, Performance Appraisal, Compensation and Benefit. They serves many […]
Categories: BI & Warehousing

Analyse Your Data on the Go with Oracle Synopsis App

Rittman Mead Consulting - Mon, 2017-01-16 02:42
Analyse Your Data on the Go with Oracle Synopsis App

How many times did you receive an email on your phone with an Excel or CSV attachment you wanted to analyse immediately in an app on your mobile, without having to wait until you reach the laptop? Not only viewing raw numbers but also creating graphs and summaries with the possibility to share the end result with your colleagues?

Analyse Your Data on the Go with Oracle Synopsis App

Your prayers have been answered with the recent release from Oracle of Oracle Synopsis. This is a new mobile app available for Android devices (an iOS version coming soon) that enables building data analyses on the go by interacting with data directly on the smartphone/tablet. It is a free application that doesn't require any OBIEE backend or additional licensing.


Happy to announce that we have launched Synopsis on Android. Now go analyze your data. https://t.co/tAxCrz4RAY pic.twitter.com/JT6dHMKgVu

— BI Mobile Labs (@bimobilelabs) December 21, 2016

Oracle's mobile ecosystem so far has been represented by Oracle BI Mobile HD: an app available since several years, requiring an additional license, which focused on the visualization of OBIEE's pre-built content like dashboard, analysis or alerts. The main limitation of BI Mobile HD is that all content must be created upfront in a computer browser in order to be accessed by the application, no "analysis" option was available other than predefined drilling or navigation capabilities.

Synopsis extends Oracle's mobile ecosystem by adding an app capable of analysing data on the go, interacting directly with files on the phone/tablet in a visual and intuitive way.

Let’s have a look at how Synopsis works. For my test I'll use the Federal U.S. Electric Utility Companies and Rates data coming from en.openei.org.
I first downloaded the CSV file in my phone, then opened the Oracle Synopsis App and selected the file from the "Downloads" folder.

Analyse Your Data on the Go with Oracle Synopsis App

By default, just by opening the file with Synopsis app, I get a project named as the source file (iouzipcodes2011) showing a bar chart of ZIP by UTILITY_NAME. I'm able to switch the coordinates of the graph by either changing the dimension of the X-axis or the measure on the Y-axis by selecting another option from the sections on top and bottom of the graph respectively.

Analyse Your Data on the Go with Oracle Synopsis App

The default graphs are provided just by opening the file, without having to define any measure or dimension.

The question now is: What am I looking at? How do I change the default behaviour?
I can get an idea about what Synopsis is doing by clicking on the project title itself. By default the application associates all text columns to dimensions and all numeric columns to measures, aggregating them with SUM. I can however change the default behaviour by:

  • Changing the aggregation method for the measures, possible alternatives are Average and Count
  • Changing the text and numbers (dimension and metrics) assignments by clicking on the cog icon and accessing the related screen
  • Hide a column by just tapping on the column name (in the grey box shown in the image below), a line will be shown on top the hidden column name.

Analyse Your Data on the Go with Oracle Synopsis App

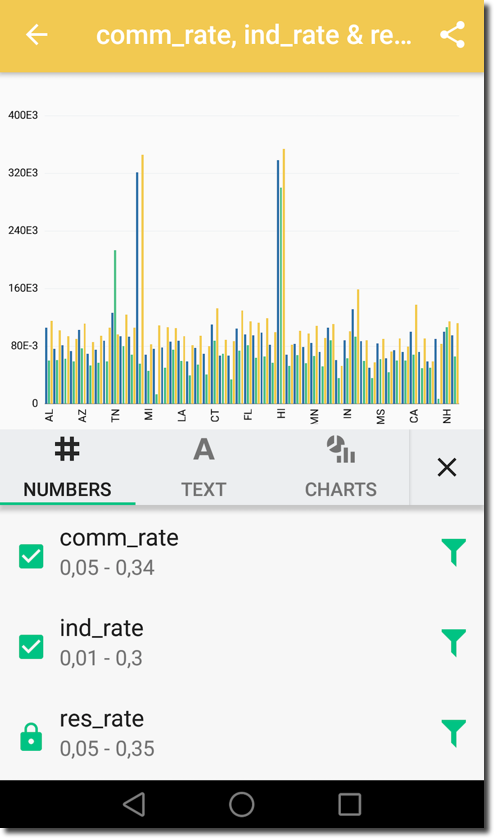

Measures format can be changed just by sliding the related number tile and setting decimals, currency, percentage format among others.

Analyse Your Data on the Go with Oracle Synopsis App

When clicking on a measure (e.g. ind_rate), a list of graphs, one per dimension, is presented. The type of graphs depends by the attribute type (bar for a text, line trend for a date) and cardinality (a donut is presented when the number of distinct value for an attribute is shown).

Analyse Your Data on the Go with Oracle Synopsis App

I can however change the graph type by clicking on it. There are multiple options:

  • One or more metrics can be added and filters can be applied
  • Attributes can be added and filters can be applied
  • The graph type can be changed

Analyse Your Data on the Go with Oracle Synopsis App

An image of the resulting graph can then be easily sent via mail by clicking on Analyse Your Data on the Go with Oracle Synopsis App

When clicking on padlock icon projects are secured with the fingertip sensor. This option is enabled only in mobile devices supporting the fingertip recognition.

Analyse Your Data on the Go with Oracle Synopsis App

Projects can be exported: a .syn file will be created containing both data and metadata. The project file can then be shared and reopened with the Synopsis app in other mobiles. In this first release is not possible to share projects between Synopsis and other tools like Visual Analyzer or Data Visualization Desktop but it’s an obvious enhancement that one could imagine Oracle considering for the future.

A list of global settings is also available in order to change import settings like blank cells management and CSV delimiter.

Analyse Your Data on the Go with Oracle Synopsis App

Be aware that Synopsis requires the Excel (or CSV) file to be in a pure tabular form; extra heading rows or collapsed cells will prevent Synopsis from parsing it. On top of this, in order for it to work at least one numeric and one text column are needed.

Conclusion

Oracle Synopsis is a great addition to Oracle's mobile offering. It provides an app capable of analysing data on the go in a very visual and intuitive way. So far only CSV and Excel files are supported but my guess is that it will soon be possible to interface to a lot of other applications especially in the Cloud. And - it’s free!

Categories: BI & Warehousing

Data Processing and Enrichment in Spark Streaming with Python and Kafka

Rittman Mead Consulting - Fri, 2017-01-13 10:00

In my previous blog post I introduced Spark Streaming and how it can be used to process 'unbounded' datasets. The example I did was a very basic one - simple counts of inbound tweets and grouping by user. All very good for understanding the framework and not getting bogged down in detail, but ultimately not so useful.

We're going to stay with Twitter as our data source in this post, but we're going to consider a real-world requirement for processing Twitter data with low-latency. Spark Streaming will again be our processing engine, with future posts looking at other possibilities in this area.

Twitter has come a long way from its early days as a SMS-driven "microblogging" site. Nowadays it's used by millions of people to discuss technology, share food tips, and, of course, track the progress of tea-making. But it's also used for more nefarious purposes, including spam, and sharing of links to pirated material. The requirement we had for this proof of concept was to filter tweets for suspected copyright-infringing links in order that further action could be taken.

The environment I'm using is the same as before - Spark 2.0.2 running on Docker with Jupyter Notebooks to develop the code (and this article!). You can download the full notebook here.

The inbound tweets are coming from an Apache Kafka topic. Any matched tweets will be sent to another Kafka topic. The match criteria are:

  • Not a retweet
  • Contains at least one URL
  • URL(s) are not on a whitelist (for example, we're not interested in links to spotify.com, or back to twitter.com)
  • The Tweet text must match at least two from a predefined list of artists, albums, and tracks. This is necessary to avoid lots of false positives - think of how many music tracks there are out there, with names that are common in English usage ("yesterday" for example). So we must match at least two ("Yesterday" and "Beatles", or "Yesterday" and "Help!").
    • Match terms will take into account common misspellings (Little Mix -> Litle Mix), hashtags (Little Mix -> #LittleMix), etc

We'll also use a separate Kafka topic for audit/debug purposes to inspect any non-matched tweets.

As well as matching the tweet against the above conditions, we will enrich the tweet message body to store the identified artist/album/track to support subsequent downstream processing.

The final part of the requirement is to keep track of the number of inbound tweets, the number of matched vs unmatched, and for those matched, which artists they were for. These counts need to be per batch and over a window of time too.

Getting Started - Prototyping the Processing Code

Before we get into the meat of the streaming code, let's take a step back and look at what we're wanting the code to achieve. From the previous examples we know we can connect to a Kafka topic, pull in tweets, parse them for given fields, and do windowed counts. So far, so easy (or at least, already figured out!). Let's take a look at nub of the requirement here - the text matching.

If we peruse the BBC Radio 1 Charts we can see the popular albums and artists of the moment (Grant me a little nostalgia here; in my day people 'pirated' music from the Radio 1 chart show onto C90 cassettes, trying to get it without the DJ talking over the start and end. Nowadays it's done on a somewhat more technologically advanced basis). Currently it's "Little Mix" with the album "Glory Days". A quick Wikipedia or Amazon search gives us the track listing too:

  1. Shout Out to My Ex
  2. Touch
  3. F.U.
  4. Oops - Little Mix feat. Charlie Puth
  5. You Gotta Not
  6. Down & Dirty
  7. Power
  8. Your Love
  9. Nobody Like You
  10. No More Sad Songs
  11. Private Show
  12. Nothing Else Matters
  13. Beep Beep
  14. Freak
  15. Touch

A quick twitter search for the first track title gives us this tweet - I have no idea if it's legit or not, but it serves as an example for our matching code requirements:

DOWNLOAD MP3: Little Mix – Shout Out To My Ex (CDQ) Track https://t.co/C30c4Fel4u pic.twitter.com/wJjyG4cdjE

— Ngvibes Media (@ngvibes_com) November 3, 2016

Using the Twitter developer API I can retrieve the JSON for this tweet directly. I'm using the excellent Paw tool to do this.

From this we can get the text element:

"text": "DOWNLOAD MP3: Little Mix \u2013 Shout Out To My Ex (CDQ) Track https:\/\/t.co\/C30c4Fel4u https:\/\/t.co\/wJjyG4cdjE",

The obvious approach would be to have a list of match terms, something like:

match_text=("Little Mix","Glory Days","Shout Out to My Ex","Touch","F.U.")

But - we need to make sure we've matched two of the three types of metadata (artist/album/track), so we need to know which it is that we've matched in the text. We also need to handle variations in text for a given match (such as misspellings etc).

What I came up with was this:

filters=[]
filters.append({"tag":"album","value": "Glory Days","match":["Glory Days","GloryDays"]})
filters.append({"tag":"artist","value": "Little Mix","match":["Little Mix","LittleMix","Litel Mixx"]})
filters.append({"tag":"track","value": "Shout Out To My Ex","match":["Shout Out To My Ex","Shout Out To My X","ShoutOutToMyEx","ShoutOutToMyX"]})
filters.append({"tag":"track","value": "F.U.","match":["F.U","F.U.","FU","F U"]})
filters.append({"tag":"track","value": "Touch","match":["Touch"]})
filters.append({"tag":"track","value": "Oops","match":["Oops"]})

def test_matching(test_string):
    print 'Input: %s' % test_string
    for f in filters:
        for a in f['match']:
            if a.lower() in test_string.lower():
                print '\tTag: %s / Value: %s\n\t\t(Match string %s)' % (f['tag'],f['value'],a)

We could then take the test string from above and test it:

test_matching('DOWNLOAD MP3: Little Mix \u2013 Shout Out To My Ex (CDQ) Track https:\/\/t.co\/C30c4Fel4u https:\/\/t.co\/wJjyG4cdjE')
Input: DOWNLOAD MP3: Little Mix \u2013 Shout Out To My Ex (CDQ) Track https:\/\/t.co\/C30c4Fel4u https:\/\/t.co\/wJjyG4cdjE
    Tag: artist / Value: Little Mix
        (Match string Little Mix)
    Tag: track / Value: Shout Out To My Ex
        (Match string Shout Out To My Ex)

as well as making sure that variations in naming were also correctly picked up and tagged:

test_matching('DOWNLOAD MP3: Litel Mixx #GloryDays https:\/\/t.co\/wJjyG4cdjE')
Input: DOWNLOAD MP3: Litel Mixx #GloryDays https:\/\/t.co\/wJjyG4cdjE
    Tag: album / Value: Glory Days
        (Match string GloryDays)
    Tag: artist / Value: Little Mix
        (Match string Litel Mixx)
Additional Processing

With the text matching figured out, we also needed to address the other requirements:

  • Not a retweet
  • Contains at least one URL
    • URL(s) are not on a whitelist (for example, we're not interested in links to spotify.com, or back to twitter.com)
Not a Retweet

In the old days retweets were simply reposting the same tweet with a RT prefix; now it's done as part of the Twitter model and Twitter clients display the original tweet with the retweeter shown. In the background though, the JSON is different from an original tweet (i.e. not a retweet).

Original tweet:

Because we all know how "careful" Trump is about not being recorded when he's not aware of it. #BillyBush #GoldenGate

— George Takei (@GeorgeTakei) January 12, 2017
{
  "created_at": "Thu Jan 12 00:36:22 +0000 2017",
  "id": 819342218611728384,
  "id_str": "819342218611728384",
  "text": "Because we all know how \"careful\" Trump is about not being recorded when he's not aware of it. #BillyBush #GoldenGate",

[...]

Retweet:

{
  "created_at": "Thu Jan 12 14:40:44 +0000 2017",
  "id": 819554713083461632,
  "id_str": "819554713083461632",
  "text": "RT @GeorgeTakei: Because we all know how \"careful\" Trump is about not being recorded when he's not aware of it. #BillyBush #GoldenGate",

[...]

  "retweeted_status": {
    "created_at": "Thu Jan 12 00:36:22 +0000 2017",
    "id": 819342218611728384,
    "id_str": "819342218611728384",
    "text": "Because we all know how \"careful\" Trump is about not being recorded when he's not aware of it. #BillyBush #GoldenGate",
[...]

So retweets have an additional set of elements in the JSON body, under the retweeted_status element. We can pick this out using the get method as seen in this code snippet, where tweet is a Python object created from a json.loads from the JSON of the tweet:

if tweet.get('retweeted_status'):
    print 'Tweet is a retweet'
else:
    print 'Tweet is original'
Contains a URL, and URL is not on Whitelist

Twitter are very good to us in the JSON they supply for each tweet. Every possible attribute of the tweet is encoded as elements in the JSON, meaning that we don't have to do any nasty parsing of the tweet text itself. To find out if there are URLs in the tweet, we just check the entities.urls element, and iterate through the array if present.

if not tweet.get('entities'):
    print 'no entities element'
else:
    if not tweet.get('entities').get('urls'):
        print 'no entities.urls element'

The URL itself is again provided to us by Twitter as the expanded_url within the urls array, and using the urlsplit library as I did previously we can extract the domain:

for url in tweet['entities']['urls']:

    expanded_url = url['expanded_url']
    domain = urlsplit(expanded_url).netloc

With the domain extracted, we can then compare it to a predefined whitelist so that we don't pick up tweets that are just linking back to sites such as Spotify, iTunes, etc. Here I'm using the Python set type and issubset method to compare the list of domain(s) that I've extracted from the tweet into the url_info list, against the whitelist:

if set(url_info['domain']).issubset(domain_whitelist):
    print 'All domains whitelisted'
The Stream Processing Bit

With me so far? We've looked at the requirements for what our stream processing needs to do, and worked out the prototype code that will do this. Now we can jump into the actual streaming code. You can see the actual notebook here if you want to try this yourself.

Job control variables
batchIntervalSec=30
windowIntervalSec=21600 # Six hours
app_name = 'spark_twitter_enrich_and_count_rm_01e'
Make Kafka available to Jupyter
import os
os.environ['PYSPARK_SUBMIT_ARGS'] = '--packages org.apache.spark:spark-streaming-kafka-0-8_2.11:2.0.2 pyspark-shell'
os.environ['PYSPARK_PYTHON'] = '/opt/conda/envs/python2/bin/python'
Import dependencies

As well as Spark libraries, we're also bringing in the KafkaProducer library which will enable us to send messages to Kafka. This is in the kafka-python package. You can install this standalone on your system, or inline as done below.

# Necessary to make Kafka library available to pyspark
os.system("pip install kafka-python")

#    Spark
from pyspark import SparkContext
#    Spark Streaming
from pyspark.streaming import StreamingContext
from pyspark.streaming.kafka import KafkaUtils
#    Kafka
from kafka import SimpleProducer, KafkaClient
from kafka import KafkaProducer

#    json parsing
import json
#    url deconstruction
from urlparse import urlsplit
#    regex domain handling
import re
Define values to match
filters=[]
filters.append({"tag":"album","value": "Glory Days","match":["Glory Days","GloryDays"]})
filters.append({"tag":"artist","value": "Little Mix","match":["Little Mix","LittleMix","Litel Mixx"]})
filters.append({"tag":"track","value": "Shout Out To My Ex","match":["Shout Out To My Ex","Shout Out To My X","ShoutOutToMyEx","ShoutOutToMyX"]})
filters.append({"tag":"track","value": "F.U.","match":["F.U","F.U.","FU","F U"]})
filters.append({"tag":"track","value": "Touch","match":["Touch"]})
filters.append({"tag":"track","value": "Oops","match":["Oops"]})
Define whitelisted domains
domain_whitelist=[]
domain_whitelist.append("itun.es")
domain_whitelist.append("wikipedia.org")
domain_whitelist.append("twitter.com")
domain_whitelist.append("instagram.com")
domain_whitelist.append("medium.com")
domain_whitelist.append("spotify.com")
Function: Unshorten shortened URLs (bit.ly etc)
# Source: http://stackoverflow.com/a/4201180/350613
import httplib
import urlparse

def unshorten_url(url):
    parsed = urlparse.urlparse(url)
    h = httplib.HTTPConnection(parsed.netloc)
    h.request('HEAD', parsed.path)
    response = h.getresponse()
    if response.status/100 == 3 and response.getheader('Location'):
        return response.getheader('Location')
    else:
        return url
Function: Send messages to Kafka

To inspect the Kafka topics as messages are sent use:

kafka-console-consumer --zookeeper cdh57-01-node-01.moffatt.me:2181 --topic twitter_matched2

N.B. following the Design Patterns for using foreachRDD guide here.

# http://spark.apache.org/docs/latest/streaming-programming-guide.html#design-patterns-for-using-foreachrdd

def send_to_kafka_matched(partition):
    from kafka import SimpleProducer, KafkaClient
    from kafka import KafkaProducer

    kafka_prod = KafkaProducer(bootstrap_servers='cdh57-01-node-01.moffatt.me:9092')
    for record in partition:
        kafka_prod.send('twitter_matched2', str(json.dumps(record)))

def send_to_kafka_notmatched(partition):
    from kafka import SimpleProducer, KafkaClient
    from kafka import KafkaProducer

    kafka_prod = KafkaProducer(bootstrap_servers='cdh57-01-node-01.moffatt.me:9092')
    for record in partition:
        kafka_prod.send('twitter_notmatched2', str(record))

def send_to_kafka_err(partition):
    from kafka import SimpleProducer, KafkaClient
    from kafka import KafkaProducer

    kafka_prod = KafkaProducer(bootstrap_servers='cdh57-01-node-01.moffatt.me:9092')
    for record in partition:
        kafka_prod.send('twitter_err2', str(record))
Function: Process each tweet

This is the main processing code. It implements all of the logic described in the requirements above. If a processing condition is not met, the function returns a negative code and description of the condition that was not met. Errors are also caught and returned.

You can see a syntax-highlighted version of the code in the notebook here.

def process_tweet(tweet):
    # Check that there's a URLs in the tweet before going any further
    if tweet.get('retweeted_status'):
        return (-1,'retweet - ignored',tweet)

    if not tweet.get('entities'):
        return (-2,'no entities element',tweet)

    if not tweet.get('entities').get('urls'):
        return (-3,'no entities.urls element',tweet)

    # Collect all the domains linked to in the tweet
    url_info={}
    url_info['domain']=[]
    url_info['primary_domain']=[]
    url_info['full_url']=[]
    try:
        for url in tweet['entities']['urls']:
            try:
                expanded_url = url['expanded_url']
            except Exception, err:
                return (-104,err,tweet)

            # Try to resolve the URL (assumes it's shortened - bit.ly etc)
            try:
                expanded_url = unshorten_url(expanded_url)
            except Exception, err:
                return (-108,err,tweet)

            # Determine the domain
            try:
                domain = urlsplit(expanded_url).netloc
            except Exception, err:
                return (-107,err,tweet)
            try:
                # Extract the 'primary' domain, e.g. www36.foobar.com -> foobar.com
                #
                # This logic is dodgy for UK domains (foo.co.uk, foo.org.uk, etc)
                # since it truncates to the last two parts of the domain only (co.uk)
                #
                re_result = re.search('(\w+\.\w+)$',domain)
                if re_result:
                    primary_domain = re_result.group(0)
                else:
                    primary_domain = domain
            except Exception, err:
                return (-105,err,tweet)

            try:
                url_info['domain'].append(domain)
                url_info['primary_domain'].append(primary_domain)
                url_info['full_url'].append(expanded_url)
            except Exception, err:
                return (-106,err,tweet)


        # Check domains against the whitelist
        # If every domain found is in the whitelist, we can ignore them
        try:
            if set(url_info['primary_domain']).issubset(domain_whitelist):
                return (-8,'All domains whitelisted',tweet)
        except Exception, err:
            return (-103,err,tweet)

        # Check domains against the blacklist
        # Unless a domain is found, we ignore it
        #Only use this if you have first defined the blacklist!
        #if not set(domain_blacklist).intersection(url_info['primary_domain']):
        #    return (-9,'No blacklisted domains found',tweet)


    except Exception, err:
        return (-102,err,tweet)

    # Parse the tweet text against list of trigger terms
    # --------------------
    # This is rather messy iterative code that maybe can be optimised
    #
    # Because match terms are not just words, it's not enough to break
    #  up the tweet text into words and match against the filter list.
    #  Instead we have to take each filter term and see if it exists
    #  within the tweet text as a whole
    #
    # Using a set instead of list so that duplicates aren't added
    #
    matched=set()
    try:
        for f in filters:
            for a in f['match']:
                tweet_text = tweet['text']
                match_text = a.decode('utf-8')
                if match_text in tweet_text:
                    matched.add((f['tag'],f['value']))
    except Exception, err:
        return (-101,err,tweet)

    #-----
    # Add the discovered metadata into the tweet object that this function will return
    try:
        tweet['enriched']={}
        tweet['enriched']['media_details']={}
        tweet['enriched']['url_details']=url_info
        tweet['enriched']['match_count']=len(matched)
        for match in matched:
            tweet['enriched']['media_details'][match[0]]=match[1]

    except Exception, err:
        return (-100,err,tweet)

    return (len(matched),tweet)
Function: Streaming context definition

This is the function that defines the streaming context. It needs to be a function because we're using windowing and so the streaming context needs to be configured to checkpoint.

As well as processing inbound tweets, it performs counts of:

  • Inbound
  • Outbound, by type (match/no match/error)
  • For matched tweets, top domains and artists

The code is commented inline to explain how it works. You can see a syntax-highlighted version of the code in the notebook here.

def createContext():
    sc = SparkContext(appName="spark_twitter_enrich_and_count_01")
    sc.setLogLevel("WARN")
    ssc = StreamingContext(sc, batchIntervalSec)

    # Define Kafka Consumer and Producer
    kafkaStream = KafkaUtils.createStream(ssc, 'cdh57-01-node-01.moffatt.me:2181', app_name, {'twitter':1})

    ## Get the JSON tweets payload
    ## >>TODO<<  This is very brittle - if the Kafka message retrieved is not valid JSON the whole thing falls over
    tweets_dstream = kafkaStream.map(lambda v: json.loads(v[1]))

    ## -- Inbound Tweet counts
    inbound_batch_cnt = tweets_dstream.count()
    inbound_window_cnt = tweets_dstream.countByWindow(windowIntervalSec,batchIntervalSec)

    ## -- Process
    ## Match tweet to trigger criteria
    processed_tweets = tweets_dstream.\
        map(lambda tweet:process_tweet(tweet))

    ## Send the matched data to Kafka topic
    ## Only treat it as a match if we hit at least two of the three possible matches (artist/track/album)
    ##
    ## _The first element of the returned object is a count of the number of matches, or a negative
    ##  to indicate an error or no URL content in the tweet._
    ##
    ## _We only want to send the actual JSON as the output, so use a `map` to get just this element_

    matched_tweets = processed_tweets.\
                        filter(lambda processed_tweet:processed_tweet[0]>1).\
                        map(lambda processed_tweet:processed_tweet[1])

    matched_tweets.foreachRDD(lambda rdd: rdd.foreachPartition(send_to_kafka_matched))
    matched_batch_cnt = matched_tweets.count()
    matched_window_cnt = matched_tweets.countByWindow(windowIntervalSec,batchIntervalSec)

    ## Set up counts for matched metadata
    ##-- Artists
    matched_artists = matched_tweets.map(lambda tweet:(tweet['enriched']['media_details']['artist']))

    matched_artists_batch_cnt = matched_artists.countByValue()\
                                    .transform((lambda foo:foo.sortBy(lambda x:-x[1])))\
                                    .map(lambda x:"Batch/Artist: %s\tCount: %s" % (x[0],x[1]))

    matched_artists_window_cnt = matched_artists.countByValueAndWindow(windowIntervalSec,batchIntervalSec)\
                                    .transform((lambda foo:foo.sortBy(lambda x:-x[1])))\
                                    .map(lambda x:"Window/Artist: %s\tCount: %s" % (x[0],x[1]))

    ##-- Domains
    ## Since url_details.primary_domain is an array, need to flatMap here
    matched_domains = matched_tweets.flatMap(lambda tweet:(tweet['enriched']['url_details']['primary_domain']))

    matched_domains_batch_cnt = matched_domains.countByValue()\
                                    .transform((lambda foo:foo.sortBy(lambda x:-x[1])))\
                                    .map(lambda x:"Batch/Domain: %s\tCount: %s" % (x[0],x[1]))
    matched_domains_window_cnt = matched_domains.countByValueAndWindow(windowIntervalSec,batchIntervalSec)\
                                    .transform((lambda foo:foo.sortBy(lambda x:-x[1])))\
                                    .map(lambda x:"Window/Domain: %s\tCount: %s" % (x[0],x[1]))

    ## Display non-matches for inspection
    ##
    ## Codes less than zero but greater than -100 indicate a non-match (e.g. whitelist hit), but not an error

    nonmatched_tweets = processed_tweets.\
        filter(lambda processed_tweet:(-99<=processed_tweet[0]<=1))

    nonmatched_tweets.foreachRDD(lambda rdd: rdd.foreachPartition(send_to_kafka_notmatched))

    nonmatched_batch_cnt = nonmatched_tweets.count()
    nonmatched_window_cnt = nonmatched_tweets.countByWindow(windowIntervalSec,batchIntervalSec)

    ##  Print any erroring tweets
    ##
    ## Codes less than -100 indicate an error (try...except caught)

    errored_tweets = processed_tweets.\
                        filter(lambda processed_tweet:(processed_tweet[0]<=-100))
    errored_tweets.foreachRDD(lambda rdd: rdd.foreachPartition(send_to_kafka_err))

    errored_batch_cnt = errored_tweets.count()
    errored_window_cnt = errored_tweets.countByWindow(windowIntervalSec,batchIntervalSec)

    ## Print counts
    inbound_batch_cnt.map(lambda x:('Batch/Inbound: %s' % x))\
        .union(matched_batch_cnt.map(lambda x:('Batch/Matched: %s' % x))\
            .union(nonmatched_batch_cnt.map(lambda x:('Batch/Non-Matched: %s' % x))\
                .union(errored_batch_cnt.map(lambda x:('Batch/Errored: %s' % x)))))\
        .pprint()

    inbound_window_cnt.map(lambda x:('Window/Inbound: %s' % x))\
        .union(matched_window_cnt.map(lambda x:('Window/Matched: %s' % x))\
            .union(nonmatched_window_cnt.map(lambda x:('Window/Non-Matched: %s' % x))\
                .union(errored_window_cnt.map(lambda x:('Window/Errored: %s' % x)))))\
        .pprint()

    matched_artists_batch_cnt.pprint()
    matched_artists_window_cnt.pprint()
    matched_domains_batch_cnt.pprint()
    matched_domains_window_cnt.pprint()

    return ssc
Start the streaming context
ssc = StreamingContext.getOrCreate('/tmp/%s' % app_name,lambda: createContext())
ssc.start()
ssc.awaitTermination()
Stream Output Counters

From the stdout of the job we can see the simple counts of inbound and output splits, both per batch and accumulating window:

-------------------------------------------
Time: 2017-01-13 11:50:30
-------------------------------------------
Batch/Inbound: 9
Batch/Matched: 0
Batch/Non-Matched: 9
Batch/Errored: 0

-------------------------------------------
Time: 2017-01-13 11:50:30
-------------------------------------------
Window/Inbound: 9
Window/Non-Matched: 9

-------------------------------------------
Time: 2017-01-13 11:51:00
-------------------------------------------
Batch/Inbound: 21
Batch/Matched: 0
Batch/Non-Matched: 21
Batch/Errored: 0

-------------------------------------------
Time: 2017-01-13 11:51:00
-------------------------------------------
Window/Inbound: 30
Window/Non-Matched: 30

The details of identified artists within tweets is also tracked, per batch and accumulated over the window period (6 hours, in this example)

-------------------------------------------
Time: 2017-01-12 12:45:30
-------------------------------------------
Batch/Artist: Major Lazer       Count: 4
Batch/Artist: David Bowie       Count: 1

-------------------------------------------
Time: 2017-01-12 12:45:30
-------------------------------------------
Window/Artist: Major Lazer      Count: 1320
Window/Artist: Drake    Count: 379
Window/Artist: Taylor Swift     Count: 160
Window/Artist: Metallica        Count: 94
Window/Artist: David Bowie      Count: 84
Window/Artist: Lady Gaga        Count: 37
Window/Artist: Pink Floyd       Count: 11
Window/Artist: Kate Bush        Count: 10
Window/Artist: Justice  Count: 9
Window/Artist: The Weeknd       Count: 8
Kafka Output Matched

The matched Kafka topic holds a stream of tweets in JSON format, with the discovered metadata (artist/album/track) added. I'm using the Kafka console consumer to view the contents, parsed through jq to show just the tweet text and metadata that has been added.

kafka-console-consumer --zookeeper cdh57-01-node-01.moffatt.me:2181 \
--topic twitter_matched1 \
--from-beginning|jq -r "[.text,.enriched.url_details.primary_domain[0],.enriched.media_details.artist,.enriched.media_details.album,.enriched.media_details.track,.enriched.match_count] "
[
  "Million Reasons by Lady Gaga - this is horrendous sorry @ladygaga https://t.co/rEtePIy3OT",
  "youtube.com",
  "https://www.youtube.com/watch?v=NvMoctjjdhA&feature=youtu.be",
  "Lady Gaga",
  null,
  "Million Reasons",
  2
]
Non-Matched

On our Kafka topics outbound we can see the non-matched messages. Probably you'd disable this stream once the processing logic was finalised, but it's useful to be able to audit and validate the reasons for non-matches. Here a retweet is ignored, and we can see it's a retweet from the RT prefix of the text field. The -1 is the return code from the process_tweets function denoting a non-match:

(-1, 'retweet - ignored', {u'contributors': None, u'truncated': False, u'text': u'RT @ChartLittleMix: Little Mix adicionou datas para a Summer Shout Out 2017 no Reino Unido https://t.co/G4H6hPwkFm', u'@timestamp': u'2017-01-13T11:45:41.000Z', u'is_quote_status': False, u'in_reply_to_status_id': None, u'id': 819873048132288513, u'favorite_count': 0, u'source':
Summary

In this article we've built on the foundations of the initial exploration of Spark Streaming on Python, expanding it out to address a real-world processing requirement. Processing unbounded streams of data this way is not as complex as you may think, particularly for the benefits that it can yield in reducing the latencies between an event occuring and taking action from it.

We've not touched on some of the more complex areas, such as scaling this up to multiple Spark nodes, partitioned Kafka topics, and so on - that's another [kafka] topic (sorry...) for another day. The code itself is also rudimentary - before moving it into Production there'd be some serious refactoring and optimisation review to be performed on it.

You can find the notebook for this article here, and the previous article's here.

If you'd like more information on how Rittman Mead can help your business get the most of out its data, please do get in touch!

Categories: BI & Warehousing

Getting Started with Spark Streaming, Python, and Kafka

Rittman Mead Consulting - Thu, 2017-01-12 07:42

Last month I wrote a series of articles in which I looked at the use of Spark for performing data transformation and manipulation. This was in the context of replatforming an existing Oracle-based ETL and datawarehouse solution onto cheaper and more elastic alternatives. The processing that I wrote was very much batch-focussed; read a set of files from block storage ('disk'), process and enrich the data, and write it back to block storage.

In this article I am going to look at Spark Streaming. This is one of several libraries that the Spark platform provides (others include Spark SQL, Spark MLlib, and Spark GraphX). Spark Streaming provides a way of processing "unbounded" data - commonly referred to as "streaming" data. It does this by breaking it up into microbatches, and supporting windowing capabilities for processing across multiple batches. You can read more in the excellent Streaming Programming Guide.

(image src)

Why Stream Processing?

Processing unbounded data sets, or "stream processing", is a new way of looking at what has always been done as batch in the past. Whilst intra-day ETL and frequent batch executions have brought latencies down, they are still independent executions with optional bespoke code in place to handle intra-batch accumulations. With a platform such as Spark Streaming we have a framework that natively supports processing both within-batch and across-batch (windowing).

By taking a stream processing approach we can benefit in several ways. The most obvious is reducing latency between an event occurring and taking an action driven by it, whether automatic or via analytics presented to a human. Other benefits include a more smoothed out resource consumption profile. We can avoid the very 'spiky' demands on CPU/memory/etc every time a batch runs by instead processing the same volume of data processed but in smaller intervals. Finally, given that most data we process is actually unbounded ("life doesn't happen in batches"), designing new systems to be batch driven - with streaming seen as an exception - is actually an anachronism with roots in technology limitations that are rapidly becoming moot. Stream processing doesn't have to imply, or require, "fast data" or "big data". It can just mean processing data continually as it arrives, and not artificially splitting it into batches.

For more details and discussion of streaming in depth and some of its challenges, I would recommend:

Use-Case and Development Environment

So with that case made above for stream processing, I'm actually going to go back to a very modest example. The use-case I'm going to put together is - almost inevitably for a generic unbounded data example - using Twitter, read from an Apache Kafka topic. We'll start simply, counting the number of tweets per user within each batch and doing some very simple string manipulations. After that we'll see how to do the same but over a period of time (windowing). In the next blog we'll extend this further into a more useful example, still based on Twitter but demonstrating how to satisfy some real-world requirements in the processing.

I developed all of this code using Jupyter Notebooks. I've written before about how awesome notebooks are (along with Jupyter, there's Apache Zeppelin). As well as providing a superb development environment in which both the code and the generated results can be seen, Jupyter gives the option to download a Notebook to Markdown. This blog runs on Ghost, which uses Markdown as its native syntax for composing posts - so in fact what you're reading here comes directly from the notebook in which I developed the code. Pretty cool.

If you want can view the notebook online here, and from there download it and run it live on your own Jupyter instance.

I used the docker image all-spark-notebook to provide both Jupyter and the Spark runtime environment. By using Docker I don't have to really worry about provisioning the platform on which I want to develop the code - I can just dive straight in and start coding. As and when I'm ready to deploy the code to a 'real' execution environment (for example EMR), then I can start to worry about that. The only external aspect was an Apache Kafka cluster that I had already, with tweets from the live Twitter feed on an Apache Kafka topic imaginatively called twitter.

To run the code in Jupyter, you can put the cursor in each cell and press Shift-Enter to run it each cell at a time -- or you can use menu option Kernel -> Restart & Run All. When a cell is executing you'll see a [*] next to it, and once the execution is complete this changes to [y] where y is execution step number. Any output from that step will be shown immediately below it.

To run the code standalone, you would download the .py from Jupyter, and execute it from the commandline using:

/usr/local/spark-2.0.2-bin-hadoop2.7/bin/spark-submit --packages org.apache.spark:spark-streaming-kafka-0-8_2.11:2.0.2 spark_code.py
Preparing the Environment

We need to make sure that the packages we're going to use are available to Spark. Instead of downloading jar files and worrying about paths, we can instead use the --packages option and specify the group/artifact/version based on what's available on Maven and Spark will handle the downloading. We specify PYSPARK_SUBMIT_ARGS for this to get passed correctly when executing from within Jupyter.

import os
os.environ['PYSPARK_SUBMIT_ARGS'] = '--packages org.apache.spark:spark-streaming-kafka-0-8_2.11:2.0.2 pyspark-shell'
Import dependencies

We need to import the necessary pySpark modules for Spark, Spark Streaming, and Spark Streaming with Kafka. We also need the python json module for parsing the inbound twitter data

#    Spark
from pyspark import SparkContext
#    Spark Streaming
from pyspark.streaming import StreamingContext
#    Kafka
from pyspark.streaming.kafka import KafkaUtils
#    json parsing
import json
Create Spark context

The Spark context is the primary object under which everything else is called. The setLogLevel call is optional, but saves a lot of noise on stdout that otherwise can swamp the actual outputs from the job.

sc = SparkContext(appName="PythonSparkStreamingKafka_RM_01")
sc.setLogLevel("WARN")
Create Streaming Context

We pass the Spark context (from above) along with the batch duration which here is set to 60 seconds.

See the API reference and programming guide for more details.

ssc = StreamingContext(sc, 60)
Connect to Kafka

Using the native Spark Streaming Kafka capabilities, we use the streaming context from above to connect to our Kafka cluster. The topic connected to is twitter, from consumer group spark-streaming. The latter is an arbitrary name that can be changed as required.

For more information see the documentation.

kafkaStream = KafkaUtils.createStream(ssc, 'cdh57-01-node-01.moffatt.me:2181', 'spark-streaming', {'twitter':1})
Message Processing Parse the inbound message as json

The inbound stream is a DStream, which supports various built-in transformations such as map which is used here to parse the inbound messages from their native JSON format.

Note that this will fail horribly if the inbound message isn't valid JSON.

parsed = kafkaStream.map(lambda v: json.loads(v[1]))
Count number of tweets in the batch

The DStream object provides native functions to count the number of messages in the batch, and to print them to the output:

We use the map function to add in some text explaining the value printed.

Note that nothing gets written to output from the Spark Streaming context and descendent objects until the Spark Streaming Context is started, which happens later in the code. Also note that pprint by default only prints the first 10 values.

parsed.count().map(lambda x:'Tweets in this batch: %s' % x).pprint()

If you jump ahead and try to use Windowing at this point, for example to count the number of tweets in the last hour using the countByWindow function, it'll fail. This is because we've not set up the streaming context with a checkpoint directory yet. You'll get the error: java.lang.IllegalArgumentException: requirement failed: The checkpoint directory has not been set. Please set it by StreamingContext.checkpoint().. See later on in the blog for details about how to do this.

Extract Author name from each tweet

Tweets come through in a JSON structure, of which you can see an example here. We're going to analyse tweets by author, which is accessible in the JSON structure at user.screen_name.

The lambda anonymous function is used to apply the map to each RDD within the DStream. The result is a DStream holding just the author's screenname for each tweet in the original DStream.

authors_dstream = parsed.map(lambda tweet: tweet['user']['screen_name'])
Count the number of tweets per author

With our authors DStream, we can now count them using the countByValue function. This is conceptually the same as this quasi-SQL statement:

SELECT   AUTHOR, COUNT(*)
FROM     DSTREAM
GROUP BY AUTHOR

Using countByValue is a more legible way of doing the same thing that you'll see done in tutorials elsewhere with a map / reduceBy.

author_counts = authors_dstream.countByValue()
author_counts.pprint()
Sort the author count

If you try and use the sortBy function directly against the DStream you get an error:

'TransformedDStream' object has no attribute 'sortBy'

This is because sort is not a built-in DStream function. Instad we use the transform function to access sortBy from pySpark.

To use sortBy you specify a lambda function to define the sort order. Here we're going to do it based on the number of tweets (index 1 of the RDD) per author. You'll note this index references being used in the sortBy lambda function x[1], negated to reverse the sort order.

Here I'm using \ as line continuation characters to make the code more legible.

author_counts_sorted_dstream = author_counts.transform(\
  (lambda foo:foo\
   .sortBy(lambda x:( -x[1]))))
author_counts_sorted_dstream.pprint()
Get top 5 authors by tweet count

To display just the top five authors, based on number of tweets in the batch period, we'll using the take function. My first attempt at this failed with:

AttributeError: 'list' object has no attribute '_jrdd'

Per my woes on StackOverflow a parallelize is necessary to return the values into a DStream form.

top_five_authors = author_counts_sorted_dstream.transform\
  (lambda rdd:sc.parallelize(rdd.take(5)))
top_five_authors.pprint()
Get authors with more than one tweet, or whose username starts with 'rm'

Let's get a bit more fancy now - filtering the resulting list of authors to only show the ones who have tweeted more than once in our batch window, or -arbitrarily- whose screenname begins with rm...

filtered_authors = author_counts.filter(lambda x:\
                                                x[1]>1 \
                                                or \
                                                x[0].lower().startswith('rm'))

We'll print this list of authors matching the criteria, sorted by the number of tweets. Note how the sort is being done inline to the calling of the pprint function. Assigning variables and then pprinting them as I've done above is only done for clarity. It also makes sense if you're going to subsequently reuse the derived stream variable (such as with the author_counts in this code).

filtered_authors.transform\
  (lambda rdd:rdd\
  .sortBy(lambda x:-x[1]))\
  .pprint()
List the most common words in the tweets

Every example has to have a version of wordcount, right? Here's an all-in-one with line continuations to make it clearer what's going on. Note that whilst it makes for tidier code, it also makes it harder to debug...

parsed.\
    flatMap(lambda tweet:tweet['text'].split(" "))\
    .countByValue()\
    .transform\
      (lambda rdd:rdd.sortBy(lambda x:-x[1]))\
    .pprint()
Start the streaming context

Having defined the streaming context, now we're ready to actually start it! When you run this cell, the program will start, and you'll see the result of all the pprint functions above appear in the output to this cell below. If you're running it outside of Jupyter (via spark-submit) then you'll see the output on stdout.

ssc.start()
ssc.awaitTermination()
-------------------------------------------
Time: 2017-01-11 15:34:00
-------------------------------------------
Tweets in this batch: 188

-------------------------------------------
Time: 2017-01-11 15:34:00
-------------------------------------------
(u'jenniekmz', 1)
(u'SpamNewton', 1)
(u'ShawtieMac', 1)
(u'niggajorge_2', 1)
(u'agathatochetti', 1)
(u'Tommyguns&#95;&#95;&#95;&#95;&#95;', 1)
(u'zwonderwomanzzz', 1)
(u'Blesschubstin', 1)
(u'Prikes5', 1)
(u'MayaParms', 1)
...

-------------------------------------------
Time: 2017-01-11 15:34:00
-------------------------------------------
(u'RitaBezerra12', 3)
(u'xKYLN', 2)
(u'yourmydw', 2)
(u'wintersheat', 2)
(u'biebercuzou', 2)
(u'pchrin_', 2)
(u'uslaybieber', 2)
(u'rowblanchsrd', 2)
(u'__Creammy__', 2)
(u'jenniekmz', 1)
...

-------------------------------------------
Time: 2017-01-11 15:34:00
-------------------------------------------
(u'RitaBezerra12', 3)
(u'xKYLN', 2)
(u'yourmydw', 2)
(u'wintersheat', 2)
(u'biebercuzou', 2)

-------------------------------------------
Time: 2017-01-11 15:34:00
-------------------------------------------
(u'RitaBezerra12', 3)
(u'xKYLN', 2)
(u'yourmydw', 2)
(u'wintersheat', 2)
(u'biebercuzou', 2)
(u'pchrin_', 2)
(u'uslaybieber', 2)
(u'rowblanchsrd', 2)
(u'__Creammy__', 2)

-------------------------------------------
Time: 2017-01-11 15:34:00
-------------------------------------------
(u'RT', 135)
(u'Justin', 61)
(u'Bieber', 59)
(u'on', 41)
(u'a', 32)
(u'&amp;', 32)
(u'Ros\xe9', 31)
(u'Drake', 31)
(u'the', 29)
(u'Love', 28)
...
[...]

You can see the full output from the job in the notebook here.

So there we have it, a very simple Spark Streaming application doing some basic processing against an inbound data stream from Kafka.

Windowed Stream Processing

Now let's have a look at how we can do windowed processing. This is where data is processed based on a 'window' which is a multiple of the batch duration that we worked with above. So instead of counting how many tweets there are every batch (say, 5 seconds), we could instead count how many there are per minute. Here, a minutes (60 seconds) is the window interval. We can perform this count potentially every time the batch runs; how frequently we do the count is known as the slide interval.


Image credit, and more details about window processing, here.

The first thing to do to enable windowed processing in Spark Streaming is to launch the Streaming Context with a checkpoint directory configured. This is used to store information between batches if necessary, and also to recover from failures. You need to rework your code into the pattern shown here. All the code to be executed by the streaming context goes in a function - which makes it less easy to present in a step-by-step form in a notebook as I have above.

Reset the Environment

If you're running this code in the same session as above, first go to the Jupyter Kernel menu and select Restart.

Prepare the environment

These are the same steps as above.

import os
os.environ['PYSPARK_SUBMIT_ARGS'] = '--packages org.apache.spark:spark-streaming-kafka-0-8_2.11:2.0.2 pyspark-shell'
from pyspark import SparkContext
from pyspark.streaming import StreamingContext
from pyspark.streaming.kafka import KafkaUtils
import json
Define the stream processing code
def createContext():
    sc = SparkContext(appName="PythonSparkStreamingKafka_RM_02")
    sc.setLogLevel("WARN")
    ssc = StreamingContext(sc, 5)

    # Define Kafka Consumer
    kafkaStream = KafkaUtils.createStream(ssc, 'cdh57-01-node-01.moffatt.me:2181', 'spark-streaming2', {'twitter':1})

    ## --- Processing
    # Extract tweets
    parsed = kafkaStream.map(lambda v: json.loads(v[1]))

    # Count number of tweets in the batch
    count_this_batch = kafkaStream.count().map(lambda x:('Tweets this batch: %s' % x))

    # Count by windowed time period
    count_windowed = kafkaStream.countByWindow(60,5).map(lambda x:('Tweets total (One minute rolling count): %s' % x))

    # Get authors
    authors_dstream = parsed.map(lambda tweet: tweet['user']['screen_name'])

    # Count each value and number of occurences
    count_values_this_batch = authors_dstream.countByValue()\
                                .transform(lambda rdd:rdd\
                                  .sortBy(lambda x:-x[1]))\
                              .map(lambda x:"Author counts this batch:\tValue %s\tCount %s" % (x[0],x[1]))

    # Count each value and number of occurences in the batch windowed
    count_values_windowed = authors_dstream.countByValueAndWindow(60,5)\
                                .transform(lambda rdd:rdd\
                                  .sortBy(lambda x:-x[1]))\
                            .map(lambda x:"Author counts (One minute rolling):\tValue %s\tCount %s" % (x[0],x[1]))

    # Write total tweet counts to stdout
    # Done with a union here instead of two separate pprint statements just to make it cleaner to display
    count_this_batch.union(count_windowed).pprint()

    # Write tweet author counts to stdout
    count_values_this_batch.pprint(5)
    count_values_windowed.pprint(5)

    return ssc
Launch the stream processing

This uses local disk to store the checkpoint data. In a Production deployment this would be on resilient storage such as HDFS.

Note that, by design, if you restart this code using the same checkpoint folder, it will execute the previous code - so if you need to amend the code being executed, specify a different checkpoint folder.

ssc = StreamingContext.getOrCreate('/tmp/checkpoint_v01',lambda: createContext())
ssc.start()
ssc.awaitTermination()
-------------------------------------------
Time: 2017-01-11 17:08:55
-------------------------------------------
Tweets this batch: 782
Tweets total (One minute rolling count): 782

-------------------------------------------
Time: 2017-01-11 17:08:55
-------------------------------------------
Author counts this batch:    Value AnnaSabryan   Count 8
Author counts this batch:    Value KHALILSAFADO  Count 7
Author counts this batch:    Value socialvidpress    Count 6
Author counts this batch:    Value SabSad_   Count 5
Author counts this batch:    Value CooleeBravo   Count 5
...

-------------------------------------------
Time: 2017-01-11 17:08:55
-------------------------------------------
Author counts (One minute rolling):    Value AnnaSabryan   Count 8
Author counts (One minute rolling):    Value KHALILSAFADO  Count 7
Author counts (One minute rolling):    Value socialvidpress    Count 6
Author counts (One minute rolling):    Value SabSad_   Count 5
Author counts (One minute rolling):    Value CooleeBravo   Count 5
...

[...]

-------------------------------------------
Time: 2017-01-11 17:10:10
-------------------------------------------
Tweets this batch: 5
Tweets total (One minute rolling count): 245

-------------------------------------------
Time: 2017-01-11 17:10:10
-------------------------------------------
Author counts this batch:    Value NowOnFR   Count 1
Author counts this batch:    Value IKeepIt2000   Count 1
Author counts this batch:    Value PCH_Intl  Count 1
Author counts this batch:    Value ___GlBBS  Count 1
Author counts this batch:    Value lauracoutinho24   Count 1

-------------------------------------------
Time: 2017-01-11 17:10:10
-------------------------------------------
Author counts (One minute rolling):    Value OdaSethre Count 3
Author counts (One minute rolling):    Value CooleeBravo   Count 2
Author counts (One minute rolling):    Value ArrezinaR Count 2
Author counts (One minute rolling):    Value blackpinkkot4 Count 2
Author counts (One minute rolling):    Value mat_lucidream Count 1
...

You can see the full output from the job in the notebook here. Let's take some extracts and walk through them.

Total tweet counts

First, the total tweet counts. In the first slide window, they're the same, since we only have one batch of data so far:

-------------------------------------------
Time: 2017-01-11 17:08:55
-------------------------------------------
Tweets this batch: 782
Tweets total (One minute rolling count): 782

Five seconds later, we have 25 tweets in the current batch - giving us a total of 807 (782 + 25):

-------------------------------------------
Time: 2017-01-11 17:09:00
-------------------------------------------
Tweets this batch: 25
Tweets total (One minute rolling count): 807

Fast forward just over a minute and we see that the windowed count for a minute is not just going up - in some cases it goes down - since our window is now not simply the full duration of the inbound data stream, but is shifting along and giving a total count for the last 60 seconds only.

-------------------------------------------
Time: 2017-01-11 17:09:50
-------------------------------------------
Tweets this batch: 28
Tweets total (One minute rolling count): 1012

-------------------------------------------
Time: 2017-01-11 17:09:55
-------------------------------------------
Tweets this batch: 24
Tweets total (One minute rolling count): 254
Count by Author

In the first batch, as with the total tweets, the batch tally is the same as the windowed one:

-------------------------------------------
Time: 2017-01-11 17:08:55
-------------------------------------------
Author counts this batch:    Value AnnaSabryan   Count 8
Author counts this batch:    Value KHALILSAFADO  Count 7
Author counts this batch:    Value socialvidpress    Count 6
Author counts this batch:    Value SabSad_   Count 5
Author counts this batch:    Value CooleeBravo   Count 5
...

-------------------------------------------
Time: 2017-01-11 17:08:55
-------------------------------------------
Author counts (One minute rolling):    Value AnnaSabryan   Count 8
Author counts (One minute rolling):    Value KHALILSAFADO  Count 7
Author counts (One minute rolling):    Value socialvidpress    Count 6
Author counts (One minute rolling):    Value SabSad_   Count 5
Author counts (One minute rolling):    Value CooleeBravo   Count 5

But notice in subsequent batches the rolling totals are accumulating for each author. Here we can see KHALILSAFADO (with a previous rolling total of 7, as above) has another tweet in this batch, giving a rolling total of 8:

-------------------------------------------
Time: 2017-01-11 17:09:00
-------------------------------------------
Author counts this batch:    Value DawnExperience    Count 1
Author counts this batch:    Value KHALILSAFADO  Count 1
Author counts this batch:    Value Alchemister5  Count 1
Author counts this batch:    Value uused2callme  Count 1
Author counts this batch:    Value comfyjongin   Count 1
...

-------------------------------------------
Time: 2017-01-11 17:09:00
-------------------------------------------
Author counts (One minute rolling):    Value AnnaSabryan   Count 9
Author counts (One minute rolling):    Value KHALILSAFADO  Count 8
Author counts (One minute rolling):    Value socialvidpress    Count 6
Author counts (One minute rolling):    Value SabSad_   Count 5
Author counts (One minute rolling):    Value CooleeBravo   Count 5
Summary

What I've put together is a very rudimentary example, simply to get started with the concepts. In the examples in this article I used Spark Streaming because of its native support for Python, and the previous work I'd done with Spark. Jupyter Notebooks are a fantastic environment in which to prototype code, and for a local environment providing both Jupyter and Spark it all you can't beat the Docker image all-spark-notebook.

There are other stream processing frameworks and languages out there, including Apache Flink, Kafka Streams, and Apache Beam, to name but three. Apache Storm and Apache Samza are also relevant, but whilst were early to the party seem to crop up less frequently in stream processing discussions and literature nowadays.

In the next blog we'll see how to extend this Spark Streaming further with processing that includes:

  • Matching tweet contents to predefined list of filter terms, and filtering out retweets
  • Including only tweets that include URLs, and comparing those URLs to a whitelist of domains
  • Sending tweets matching a given condition to a Kafka topic
  • Keeping a tally of tweet counts per batch and over a longer period of time, as well as counts for terms matched within the tweets
Categories: BI & Warehousing

Web-Based RPD Upload and Download for OBIEE 12c

Rittman Mead Consulting - Wed, 2017-01-11 06:15

I was among the people who were dancing and singing after finding out some of the OBIEE 12c new features. The feature I liked the most was a scripted deploy of an RPD file from a developer’s computer. I hate to make dozens of clicks for every deploy of an RPD in 11g. You may object and say that there is WLST in 11g which can do the same and even more. Well, you are right. Except for one thing: WLST is a server-side thing. Information security folk don’t like to give direct access to a server to OBIEE developers. And not every developer is capable of using it.

In OBIEE 12c the only way to upload and download RPDs from a developer’s local machine to the OBIEE server is through the command line. We’re big fans of the command-line approach because it enables automation, reduces the risk of error, and so on. But not all people like a script everything approach as we do. Many of OBIEE developers don’t like to use a command line to do what they used to do with their mouse for years. And today we have a solution for them!

Disclaimer. Everything below is a result of our investigation. It’s not a supported functionality or Oracle’s recommendation. It makes use of undocumented web services that Oracle may remove or change at any time.

Some time ago Robin Moffatt lifted the lid on OBIEE 12c Web Services. He found out how to use curl to do the same things Oracle does with their data-model-cmd (datamodel now) script. But that was purely for geek interest and intended to give us more understanding of what's going on inside of the OBIEE, not give us a new tool. So the next obvious step was to make a user-friendly interface over that web services so any OBIEE developer could utilise this sacred knowledge.

The Simplest Sample

Modern computer technologies offer us a lot of tools to build GUIs, but we wanted to keep it as simple as possible and because OBIEE’s front end is web-based, use of HTML for our RPD tool was the obvious choice too.

Download

Let's start with RPD download.
Here is the curl script to call OBIEE web service and get RPD file.

curl -X "POST" "http://192.168.0.66:7780/bi-lcm/v1/si/ssi/rpd/downloadrpd" \
--data-urlencode "target-password=Admin123" \
--basic --user weblogic:Admin123 \
> downloadrpd.rpd

an animated gif of curl download

As you can see it's pretty simple. We send a message to http://<host>:<port>/bi-lcm/v1/si/ssi/rpd/downloadrpd using POST method. As a parameter, we send a password to set to the downloaded RPD file (target-password=Admin123) and authentication information (weblogic:Admin123). As a result, we get bytes of the RPD which we redirect to the downloadrpd.rpd file. And now we want a GUI for this script. Actually, Robin already did it.

<html>
   <body>
      <FORM action="http://192.168.0.66:7780/bi-lcm/v1/si/ssi/rpd/downloadrpd"
         method="post" target=_blank>
         <P>
           New password for downloaded RPD file? <INPUT type="password" name="target-password"><BR>
            <INPUT type="submit" value="Send"> <INPUT type="reset">
      </FORM>
   </body>
</html>

pic of a local download HTML form

This is not a snippet of code you somehow should incorporate into your system. No. That's almost complete GUI for RPD download! The only thing you need to do is to change hostname and port to match your system. That's all. Simply create an HTML file, put this code into it, change host and port, open with a browser, Enjoy!

This form has no field for authentication because OBIEE server will ask us for login and password at the first call and will maintain this session later.

Upload

The upload was a little bit more tricky from the curl side. Let's take a look at the script:

curl -X POST \
     "http://192.168.0.66:7780/bi-lcm/v1/si/ssi/rpd/uploadrpd" \
     --form "file=@sample.rpd;type=application/vnd.oracle.rpd" \
     --form "rpd-password=Admin123" \
     --basic --user weblogic:Admin123

an animated gif of curl upload

Here we call another service to upload our file. Our parameters are:

  1. sample.rpd - the RPD file to upload
  2. type=application/vnd.oracle.rpd - MIME type of this file (that was the main trick).
  3. rpd-password=Admin123 - the password of sample.rpd
  4. weblogic:Admin123 - information for authentication.

But the GUI for this task is surprisingly simple. I expected it to be monstrous with lots of JS but in fact, it is small and easy. The minimum viable version is almost as simple as the upload one.

<html>
   <body>
      <FORM action="http://192.168.0.66:9502/bi-lcm/v1/si/ssi/rpd/uploadrpd"
         method="post" enctype="multipart/form-data" target=_blank>
           File to upload <INPUT type=file name="file"><BR>
           Password for uploaded RPD file? <INPUT type="password" name="rpd-password"><BR>
           <INPUT type="submit" value="Send"> <INPUT type="reset">
      </FORM>
   </body>
</html>

pic of a local upload HTML form

The use of this piece of code is exactly the same as for download. Simply put it into an HTML file, change host and port. Use it.

Keep in mind that for the both forms field names are fixed and shouldn't be changed. For example, the field for a file to upload should have name "file" and for a password - "rpd-password". Without it, magic won't work.

But there is a thing about this part that we could still improve. Depending on the browser you use it shows the response message either in the same window or downloads it as a text file. And this message is a JSON file.

In real life, this message is a one line JSON but here it is a more human-readable formatted with jq and slightly polished by hands.

{
  "clazz": ["rpd-response"],
  "links": [
    {
      "href": "http://192.168.0.66:7780/bi-lcm/v1/si/ssi/rpd/uploadrpd",
      "rel": ["self"]
    }
  ],
  "properties": {
    "entry": [
      {
        "key": "si",
        "value": {
          "type": "string",
          "value": "ssi"
        }
      },
      {
        "key": "description",
        "value": {
          "type": "string",
          "value": "RPD upload completed successfully."
        }
      },
      {
        "key": "desc_code",
        "value": {
          "type": "string",
          "value": "DESC_CODE_RPD_UPLOAD_SUCCESSFUL"
        }
      },
      {
        "key": "status",
        "value": {
          "type": "string",
          "value": "SUCCESS"
        }
      }
    ]
  },
  "title": "RPD-LCM response, SI=ssi, action=Upload RPD"
}

As you can see here, we have "description" field which holds a human readable message, "desc_code" field is the same but more suitable for automated processing and "status" field which is the first candidate to be used in automatic procedures.

It's easy to read this file but most of the time you'd prefer a simple "Success" message, right?

Going Further

These HTML forms do the trick. A developer can now download and upload RPD file easily with a minimum of clicks and without a need to learn a command-line interface. Security is managed by Weblogic server. Sounds good, right? But we can do it even better. From my point of view absolutely necessary improvements are:

  1. Add some JS to make diagnostics more user-friendly.
  2. Put these forms to a server so every developer in an organisation can use them.
Adding Some JavaScript Magic

My intent from the very beginning was to keep things as simple as possible. I’m not sure that this time my choice of JavaScript library (JQuery) was the simplest for this task, but anyways the code I have to write is very small so I like it.

<html>
<head>
<script src="./jquery-3.1.1.min.js"></script>
</head>

<body>

<script>
$(document).ready(function(){
$("#upload").on('submit', function( e ) {
        e.preventDefault();
    $.ajax( {
        url: $(this).attr('action'),
        type: 'POST',
        data: new FormData( this ),
        processData: false,
        contentType: false,
        dataFilter: function (data, type){$("#response").html(JSON.parse(data).properties.entry[1].value.value);$("#response").append('<details>'+data+'</details>');}
    });
});
});
</script>

<FORM id=upload action="http://192.168.0.136:9502/bi-lcm/v1/si/ssi/rpd/uploadrpd"
         method="post" enctype="multipart/form-data">
           File to upload <INPUT type=file name="file"><BR>
           Password for uploaded RPD file? <INPUT type="password" name="rpd-password"><BR>
           <INPUT type="submit" value="Send"> <INPUT type="reset">
</FORM>

<div id=response></div>

</body>
</html>

The script reads the form and sends it content to the server, then it reads the answer, parses it and shows in a user-friendly way. Note that it does need the Jquery library to work. The problem with this code is that it won't work locally. If you try to use it in the same way as previous samples it won't do anything. But if we take a look at the developer console of the browser we immediately find the answer. OBIEE blocks my cross-domain JavaScript call.

a pic of developer console

That could become a problem but I was going to put these files on a server anyway so that all developers could access it.

Deploying It to a Server

What I want to do now is to put my forms to some place accessible with a browser from a server where OBIEE works. To achieve that I should do a few steps.

  1. Create a directory on the server.
  2. Put my files to that directory.
  3. Expose the directory with a web server.

There are no special requirements for the place for a directory I will create. It just should be accessible by a web server (Weblogic). I prefer to keep all user content in one place so my choice is to place it somewhere inside $ORACLEHOME/userprojects.

a pic of location

But there is one special requirement for the directory content. It should have a subdirectory WEB-INF with web.xml file inside.

a pic of web.xml

For my current purposes, almost empty web.xml is just fine. That may be not the best option for the real life but I'm trying to keep things simple, remember?

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/javaee"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
    version="2.5"/>

I combined both download and upload forms into one rpdtools.html file and added some styling for a nicer look. From the functional point of view, these forms and script were not changed. And then I put this combined file and Jquery library into my "static" directory.

a pic with directory contents

Now everything is ready for the final step. I need to deploy this directory to Weblogic server so the users can access it with a browser.

Login to Weblogic console and deploy static folder as an application.
a pic of wls console

For more details on deploying folders to WLS, see the Official documentation on web.xml and Deploying Using Shared Folders.

And now the most exciting part of the process. Witness the power of this fully operational battle station! I mean RPD tools.
a pic of the final result

Summary

We showed here a very simple way of adding a web-based GUI for uploading and downloading RPD to any OBIEE 12c system. You can take it and adjust to suit your needs and be a useful day-to-day tool. Deploying this code to a server allows to give an access to it to all OBIEE developers in an organisation and add some cool JavaScript effects. But keep in mind that it uses non-documented services and is not supported by Oracle in any way. This means that it can stop working after an upgrade. Well, in that case, we'll have to invent something new for you.

In case you want to play with this tool, here is a link to our GitHub obi-web-rpd-tools.

Categories: BI & Warehousing

Essbase Cloud Service Webcast Available Online

Tim Tow - Mon, 2017-01-02 10:55
Essbase Cloud Service is coming soon and, if you haven't had a chance to learn about it, here is how you can learn about it at your leisure. Oracle had a public webcast about two weeks ago and have made both the webcast and the slides available; you must have an Oracle login to see it. Here is the link to the EssCS webcast:

EssCS Webcast

And here is a link to the slides:

EssCS Webcast Slides

Essbase Cloud Service has some exciting new functionality that you should check out, even if you plan to keep your Essbase installations on-premise.  Over time, I would expect that most, if not all, of the innovations you see will be released in the on-premise version of Essbase.  If I were a betting man, I would guess the timing to be likely near the end of 2017 with the lrelease of "EPM 2017", which is the code name for the next major on-premise release,

Enjoy!
Categories: BI & Warehousing

Python for Analytics - Exploring Data with Pandas

Rittman Mead Consulting - Thu, 2016-12-22 12:24
A Crack Team!

At Rittman Mead, we're always encouraged to branch out and pursue new skills in the field in an effort to improve upon our skill sets, and as a result, become more technically fluent. One of the great things about working here, aside from the previous, is that while we all have a really solid foundation in Oracle technologies, there are many who possess an incredibly diverse range of skills, fostered by years of working in tech-agnostic engagements. It's a great feeling to know that if you ever run up against some sort of bizarre challenge, or have to integrate some piece of arcane tech into an architectural solution, more than likely, someone, somewhere within Rittman Mead has had to do it. It is this freedom to pursue, within reason of course, other technical exploits that has nurtured a real spirit of innovation around the company within the past year. Our GitHub is overflowing with open source visualizations and performance monitoring and maintenance scripts that are simply there for the taking! We've put a lot of time into developing this stuff so our clients and partners don't have to.

Python

python logo But I digress. This blog is about Python, and well, I haven't really mentioned it up until this point. It is in this spirit of innovation, learning, and frankly, automating the boring stuff, however, that a lot of us have been pursuing automation and analytical endeavors using the Python language. It has been touted by many as THE language for data science, and rightfully so, given its accessibility and healthy selection of libraries perfectly suited to the task, such as NumPy, Seaborn, Pandas, Matplotlib. In today's exercise, we're going to walk through common data munging, transformation, and visualization tasks using some of these libraries in order to deliver quick insights into a data set that's near and dear to my heart, Game of Thrones battles and character deaths!

GoT Logo

Through this process, we will be creating our own data narrative that will help to expound upon the idle numbers and labels of the data set. We'll see that the process is less a hard and fast, rigid, set of rules for which to approach data exploration, and something more akin to solving a crime, clue by clue, letting the data tell the story.

PYTHON FOR DATA SCIENCE

Aside from its myriad, community driven and maintained libraries, the greatest thing, to me anyway, about Python is its relatively low barrier to entry. Even with little to no previous programming skills, an enterprising lad or lady can get up and running, performing basic, functional programming tasks in no time. You'll be amazed at how quickly you'll start coming up with daily tasks that you can throw a bit (or a lot) of Python at. Today, we'll be tackling some tasks like these, common to the everyday processes of data analysis and data science. Utilizing the Pandas library, in addition to a few others, we'll see how we can programmatically go from question to answer in no time, and with most any structured or unstructured data set. The primary audience of this blog will be those with a bit of Python fluency, in addition to those with an interest in data science and analytics. I will be explaining the steps and providing a Jupyter notebook (link here) for those who wish to follow along, however, for those who might need the extra guidance. So don't bail now! Let's get to it. In this instance, we'll be downloading the Game of Thrones data set from kaggle, a great site that provides open data sets and accompanying analysis projects in multiple languages. Download the data set if you'd like to follow along.

GETTING STARTED

stepping stones Let's begin by taking some steps to get our heads on straight and carve out a clear work flow. I find this is really helpful, especially in programming and/or analytical scenarios where one can begin to suffer from "analysis paralysis". So, at a high level, we'll be doing the following:

  1. First, we'll take a cursory look at the Python libraries we'll be incorporating into our data sleuthing exercise, how they're used, and some examples of their output and ideal use cases.

  2. Next we'll use the tools in these libraries to take a deeper dive into our data set and start to construct our initial line of questioning. This is where we get to be a bit creative in coming up with how we're going to wrap our heads around the data, and what kind of questions we're going to throw at it.

  3. We'll then chase down any leads, incorporating additional analyses where necessary, and begin to construct a narrative about our data set. At this point we'll be formulating hypotheses and attempting to construct visualizations that will help us to further or disprove our investigation.

PANDAS IN THE JUNGLE

Any great detective must always have with them a toolkit with which to thoroughly examine any crime scene, and that's essentially what we have in the Pandas, Seaborn, and Numpy ("num-pie") libraries for the Python programming language. They provide a set of methods (functions) that can take an input, or a number of inputs, do some magic, and then provide us with lots of really useful information. So let's begin by examining these libraries and what we can do with each.

Pandas and Numpy

pands_logo

Pandas is great at doing a bunch of really common tasks related to data exploration, not limited to, indexing and selection, merging and joining data sets, grouping and aggregations, and visualizing data. This will be the library with which we'll be doing a lot of the heavy lifting. Pandas also provides us with the Dataframe object that greatly expands on the comparatively more rigid Numpy's ndarray object. These 'objects' are simply containers that hold data of some kind, and allow us to interact on that data.

Matplotlib and Seaborn

matplot_logo

Matplotlib is a robust visualization library built to enable interactive, MATLAB style plotting on most any platform or back-end. This library, along with Seaborn, should be your go-to for producing super malleable graphs and visualizations. Working alongside matplotlib, seaborn pitches itself as a go-to for statistical based visualizations, but also supports complex, grid and algorithm based charts as well. Both of these libraries will help us to make quick and insightful decisions about our data, and help us to gather evidence further supporting, or disproving and hypotheses we might form.

THE INVESTIGATION

desk

Now that we've armed ourselves with the tools we need to thoroughly examine any potential data set we're given, let's do just that! Opening up the Game of Thrones csv files from above, let's first take a look at what kinds of information we have. The basic stats are as follows:

Synopsis

  • Battles - a complete listing of the battles in the book series and their stats! Attacker, defender, army size, you name it, we've got it.

  • Character Deaths - something the series/show is quite known for, who died? This contains some great info, such as allegiance and nobility status.

  • Character Predictions - The more morbid of the lot, this data set lists predictions on which character will die. We won't be using this sheet for our exercise.

A Hypothesis of Thrones

Having just finished the monumental series myself, you could say that at this point I'm somewhat of a subject matter expert; that at this point, we have a situation not unlike that which you might find in any organization. We've got an interested party that wants to look further into some aspect of their data. We can use our investigatory tool-set to get real results and gain some valuable and informative insights. As subject matter experts though, we should ideally be coming at our data with at least some semblance of a hypothesis, or something that we're trying to prove using our data (or disprove for that matter). For the sake of this exercise, and fitting in with the theme of the data, I'm going to try and dig up an answer to the following:

Does House Lannister, for as evil and scheming as they are, and as much as they get away with, eventually get what's coming to them?

No lannisters!

As much as I'd like to believe it's true, however, we're going to need to run the numbers, and let our data do the talking.

Importing the Data

You can follow along in the Jupyter notebook here now. Working with our Pandas library, we first need to get our data into some sort of workable object. As we stated before, this is the data frame. It is simply a table type object that is really good at handling empty values and data of many different types. We can easily perform operations on these objects and visualize them with minimal fuss. So, enough talk. Let's do it!

Working in your favorite IDE (Pycharm is easy to use and comes in a free version), we start a new project, import the libraries we need, and then drop in our first piece of code. This is the section that imports our csv data set and then converts it to data frame. So, now that we have our object, what do we do with it?

dataframe

A Graph Has No Name

Now that we have our data frame object, we can begin to throw some code at it, crunch some numbers, and see if, in fact, the Lannisters really did get what was coming to them by the end of book 5. Starting with the battles data set, let's see how they fared in the field through the arc of the story. Did they lose more or less troops comparatively? We can do this easily by breaking our data frame into smaller, more manageable chunks, and then graph these data points, accordingly. We are going to use the data set to build a step by step, set of analyses that examines the Lannister victories and defeats throughout the story.

Battle / Troop Loss Over Time

Did the Lannisters hit a losing streak, or did they do well throughout the story? Did they win or lose more of their battles over time?

  1. Start with new data frame based on house and troop sizes:
    troop sizes

  2. Filter to get new results (Lannisters only):

Lannister Troops

Right away we see we have some data issues, that is, there are some holes in the attacker size column. The good thing is that we can more or less look at this small table and get the all the info we need from it right away. The numbers drop down significantly through the years, and that's all there really is to it. But, was this in fact, because they lost more troops, or simply threw less at the problem as they began to carve out their claim to the kingdom? This analysis is not very telling. We're going to need to do some digging elsewhere to answer our question. Let's do some comparisons.

% of Battles Won / Lost

So how did the Lannisters do in the field? Of the 8 battles they fought in, how many did they win? How does this compare with the other armies of Seven Kingdoms?

As we did before, lets get a new data frame together, and then do our grunt work on it to try and answer these questions. Grabbing the columns we need, let's run the numbers on how the Lannisters stack up against the other houses of Westeros in the field.

How many battles did they fight compared to the other Houses?

battles fought

How many did they actually win?

won-to-total

We can see right away, that out of all the battles they fought throughout the series (which is decidedly more than the other houses in the series), that they came out on top. Could the Lannisters be the dominating force on the field, as well as at court? The Starks are the only house that meet them conflict for conflict, and the Lannisters still reign supreme! Let's take things down to a finer grain and see how those who aligned themselves with the Lion did compared to those who didn't.

Death by Allegiance

Opening up our character deaths file, right away we see we have some pretty good info here. We have a laundry list of characters, their death year, and the house, if any, to which they were aligned. Let's start by building a data frame, and first, filtering out those who are unaligned, in the Night's Watch, or a Wildling. We want to get a comparison between houses, and these groups will just muck up the works. Let's do the numbers. We can now plot this info on a basic bar chart to get a basic rundown of the massacre.

death by alignment

Things are starting to look up...depending on your point of view, I guess. The Lannisters, for all their dirty business, do seem to, in fact, lose the most named characters tied to their house. Of these, let's see how many were actually nobility, or rather, the most influential in furthering their cause!

noble deaths to total

It would seem our Lannisters aren't too good at keeping their hands clean, and letting those of lesser station do their dirty work for them. Although they have the second most aligned character deaths in the series, roughly 75% of them are Noble deaths, meaning that people important to their cause are dying! The only other houses that come close unfortunately, are the Starks (the Red Wedding, no doubt), and the Greyjoys. What this also means, however, is that our claim is gathering more support; the Lannisters may have climbed the royal ladder, but at what cost?

Paying Your Debts

death_prop

We can see from the donut chart above (excuse the repetition of colors) that indeed, the Lannisters have one of the highest % to total death numbers out of all the major houses in the Seven Kingdoms. This actually goes quite a long way in backing up our hypothesis; that of all the named characters in the series, the Lannisters lost the lion's share (pun intended). The disconcerting thing is that they either seem to bring down many others with them, or the other noble houses aren't terribly great at keeping themselves among the living either.

Conclusion

Are these figures, combined with their high noble of ranking noble deaths enough to satisfy my desire for vengeance? Did they truly reap what they have sown? I have to say I am ultimately undecided in the matter, as, although they did lose a great many, they in turn took a a greater number down along with them. It seems that despite these losses, any notion of vengeful satisfaction must be tempered by this fact; that although the Lannisters did end up getting hit pretty hard with significant losses, this is bittersweet when compared to the real and lasting damage they did throughout the span of the book's and show's history. Were you able to come up with any additional evidence for or against my case? Link out and show us! Thanks for reading.

Categories: BI & Warehousing

How to access Fusion Cloud for building custom BI?

Dylan's BI Notes - Tue, 2016-12-20 11:22
It was a challenge when we tried to build a BI application for Fusion Cloud application as Fusion Cloud applications, unlike those acquired solutions, such as RightNow, Elouque, and Taleo, do not have web services at that time. It was the reason why Oracle BI Application Configuration Manager was introduced.  It fills the gap by […]
Categories: BI & Warehousing

ETL Offload with Spark and Amazon EMR - Part 5 - Summary

Rittman Mead Consulting - Tue, 2016-12-20 07:30

This is the final article in a series documenting an exercise that we undertook for a client recently. Currently running an Oracle-based datawarehouse platform, the client asked for our help in understanding what a future ETL and reporting platform could look like, given the current landscape of tools available. You can read the background to the project, how we developed prototype code, deployed it to Amazon, and evaluated tools for analysing the data.

Whilst the client were generally aware of new technologies, they wanted a clear understanding of what these looked like in practice. Is it viable, as is being touted, to offload ETL entirely to open-source tools? Could they do this, without increasing their licensing costs?

The client are already well adopted to newer technologies, running their entire infrastructure on the Amazon Web Services (AWS) cloud. Given this usage of AWS, our investigation was based around deployment of the Elastic Map Reduce (EMR) Hadoop platform. Many of the findings made during the investigation are as applicable to other Hadoop platforms though, including CDH running on Oracle's Big Data Appliance.

We isolated a single process within the broader part of the client's processing estate for exploration. The point of our study was not less to implement this specific piece of functionality in the most optimal way, but to understand how in general processing would look on another platform in an end-to-end flow. Before any kind of deployment into Production of this design there would be further iterations, particularly around performance. These are discussed further below.

Overview of the Solution

The source data landed in Amazon S3 (similar in concept to HDFS), in CSV format, once per hour. We loaded each file, processed it to enrich it with reference data, and wrote it back to S3.

The enriched data was queried directly, with Presto, and also loaded into Redshift for querying there.

Oracle's Data Visualization Desktop was used as the front end for querying.

Benefits Cost Benefits
  • By moving ETL processing to Hadoop-based platform, we free up capacity (and potentially licensing costs) on the existing commerical RDBMS (Oracle) where the processing currently takes place
  • Costs are further reduced by the 'elastic' provisioning and cost model of the cloud service. You only pay for the size of the cluster necessary for your workload, for the duration that it took to execute.
Technology Benefits

In this solution we have taken advantage of the decoupling of storage from compute. This is a significant advantage that cloud technology brings.

  • Amazon S3 provides the durable data store for our data (whether CSV, Parquet, or any other data format). With S3 you simply pay for the storage that you use. S3 can be accessed by dozens of client libraries as well as HDFS-compatible APIs. Data in S3 is completely compute-target agnostic. Contrast this to data sat in your proprietory RDBMS database, and if you want to process or analyse this in another system.
  • In this instance we wanted to enrich the data, and proved Spark as an appropriate tool to do so. Running on Elastic Map Reduce we could provision this automagically, run our processing, and have the EMR cluster terminate itself once complete. The compute part of the equation is entirely isolated, and can be switched in and our of the architecture as required.

Moving existing workloads to the cloud is not just a case of provisioning servers running in someone else's data centre to perform the same work as before. To truly benefit (dare I say, leverage) from the new possibilities, it makes sense to re-architect how you store your data and perform processing on it.

As well as the benefit of cloud technology, we can see that we don't even need an RDBMS for much of this enrichment and transformation work. Redshift has proved to be useful for interactive analysis of the data, but the processing of the data that would typically get done within an RDBMS (with associated license costs) can instead be done on technology such as Spark.

Broader Observations

The world of data and analytics is changing, and there are some interesting points that this project raised, which I discuss below.

Cloud

The client for whom we carried out this work are already cloud 'converts', running their entire operation on AWS already. They're not alone in recognising the benefits of Cloud, and it's going to be interesting to see the rate at which adoption continues to occur elsewhere, particularly in the Oracle market as they ramp up their offerings.

Cloud Overview

The Cloud is of course a big deal nowadays, whether in the breathless excitement of marketing talk, or the more gradual realisation amongst more technical folk that The Cloud brings some serious benefits. There are three broad flavours of Cloud - Infrastructure, Platform, and Software (IaaS, PaaS, SaaS respectively):

  • At the lowest level, you basically rent access to tin (hardware). Infrastructure-as-a-service (IaaS) can include simply running virtual machines on someone else's hardware, but it's more clever than that. You get the ability to provision storage separately from compute, and all with virtualised networking too. Thus you store your data, but don't pay for the processing until you want to. This is a very long way from working out how big a server to order for installation in your data centre (or indeed, a VM to provision in the cloud) - how many CPUs, how much RAM, how big the hard disks should be - and worrying about under- or over-provisioning it.

    With IaaS the components can be decoupled, and scaled elastically as required. You pay for what you use.

    The additional benefit of IaaS is that someone else manages the actual hardware; machine outages, disk failures, and so on, are all someone else's concern.

  • IaaS can sometimes still be a lot of work; after all, you still have the manage the servers, or architect and manage the decoupled components such as storage and compute. The next 'aaS' up in Platform as a Service (PaaS). Here, the "platform" is provided and managed for you.

    A clear example of PaaS is the Hadoop platform. You can run a Hadoop cluster yourself, whether on Oracle's Big Data Appliance (BDA), or maybe on your own hardware (or indeed, on IaaS in the cloud) but with a distribution such as Cloudera's CDH. Point being, you still have to manage it, to tune your Hadoop parameters, and so on. Hadoop as a platform in the cloud (i.e. PaaS) is offered by many companies, including the big vendors, such as Oracle (Big Data Cloud Service), Microsoft (HDInsight), Google (Dataproc) -- and then the daddy of them all, Amazon with it's Elastic Map Reduce (EMR) platform

    Another example of PaaS is Oracle's BI Cloud Service (BICS), in which you build and run your own RPD and reports, but Oracle look after the actual server processes.

  • Software as a Service (SaaS) is where everything is provisioned and managed for you. Whereas on PaaS you still write the code that's to be run (whether a Spark routine on Hadoop, or BI metadata model on BICS), on SaaS someone has already done that too. You just provide the inputs, which obviously depend on the purpose of the SaaS. Something like GMail is a good example of SaaS. You're not having to write the web-based email, you're not having to provision the servers on which to run that - you simply utilise the software.

Cloud's Benefit to Analytics

Cloud brings benefits - but also greater subtleties to our solutions. Instead of simply provisioning one or more servers on which to hold our data and process it, we start to unpick this into separate components. In the context of this study, we have:

  • Data at rest, on S3. This is storage paid for simply based on how much you use. Importantly, you don't have to have a server (or in more abstract terms, 'compute') running. It's roughly analogous to network mounted storage. You can access S3 externally to AWS, such as your laptop or a server in your data centre. You can also access it, obviously, from within the AWS ecosystem. You can even use S3 to serve up files just as a web server would.
  • Compute, on EMR. How often do you need to carry out transformations and processing on your data? Not continuously? Then why pay for a server to sit idle the rest of the time? What about the size of the server that it does run on - how many CPUs do you need? How many nodes in your cluster? EMR solves both these problems, by enabling you to provision a Hadoop cluster of any size and spec, on demand - and optionally, terminate itself once it's completed its work so that you only pay for the compute time necessary.
  • Having a bunch of data sat around isn't going to bring any value to the business, without Analytics and a way of presenting that to the user. This could be done either through loading the data into a traditional RDBMS such as Oracle, or Redshift, and analysing it there - or potentially through one of the new generation of "SQL on Hadoop" engines, such as Impala or Presto. There's also Athena which is a SQL interface directly to data in S3 - you don't even need to be running a Hadoop cluster to use this.
Innovation vs Execution (or, just because you can, doesn't mean you should)

The code written during this exercise could, with a bit of tidying up, be run in Production. As in, it does the job that it was built to do. We could even expand it to audit row counts in and out, report duff data, send notifications when complete. What about the next processing requirement that comes in? More bespoke code? And more? At some point we'd probably end up refactoring a whole bunch of it into some kind of framework. Into that framework we'd obviously want good things like handling SCDs, data lineage, and more. Welcome to re-inventing the in-house ETL wheel. Whether Spark jobs nowadays, PL/SQL ten years ago, or COBOL routines a decade before that - doing data processing at a wider scale soon becomes a challenge. Even with the best coders (or 'engineers' as they're now called) in the world, you're going to end up with a bespoke platform that's relient on inhouse skills to support and maintain. That presumes of course that you can find the relevant skills in the market to write all the processing and transformations that you need - and support them, of course. As you aquire new staff, they'll need to be trained on your code base - and suddenly the "free" technology platform isn't appearing so cheap.

Before you shoot me down for a hyperbolic strawman argument, there is an important dichotomy to draw here, between innovation and execution. Applicable to the world of big data in general, it is a useful concept spelt out in the Oracle Information Management & Big Data Reference Architecture. For data to provide value, it doesn't have to land straight away into the world of formalised development processes, Production environments, and so on. A lot of the time you will want to 'poke around' with it, to explore it -- to innovate. Of the technology base out there, you may not know which tool, or library, is going to yield the best results. This is where the "discovery lab" comes in, and where the type of hand-cranked Spark coding that I've demonstrated sits:

Sometimes, work done in innovation is complete once it's done. As in, it has answered the required business question, and provided its value. But a lot of the time though it will simply establish and prove the process that is to be applied to the data, that then needs taking through to the execution layer. This is often called, in an abuse of the English language, "productionisation" or "industrialisation". This is where the questions of code maintenance and scalability need to be seriously considered. And this is where you need a scalable and maintainable approach to the design, management, and orchestration of your data processing - which is exactly what a tool like Oracle Data Integrator (ODI) provides.

ODI is the premier DI tool on the market, with good support for "big data" technologies, including the ability to generate Spark code to perform transformation. It can be deployed to run on Amazon's EMR, as illustrated here, as well as Oracle's Cloud platform. As can be seen from this presentation from Oracle Open World in September 2016, there's additional capabilities coming including around Kafka, Spark Streaming, and Cassandra.

Another route to examine, alongside ODI, is the ecosystem within AWS itself around code execution and orchestration with tools such as Lambda, Data Pipeline, and Simple Workflow Service. There's also AWS Glue, which like Athena was announced at re:Invent 2016. This promises three key things of crucial importance here:

  • A Data Catalog, populated automatically, and not only just supporting multiple formats and sources, but including automatic classification (e.g. "Web Log") of the data itself.
  • Automatic generation of ETL code. From the release announcement notes this looks like it is pySpark-based code. So the code that I put together for this exercise here, manually (and at times, painfully), could be automagically generated based on source/target and operators required. The announcement notes also specifically mention the inclusion of standard ETL processes such as handling bad data
  • Orchestration and management of ETL jobs. One of my main objections above to taking 'proof of concept' pySpark code and trying to use it in a Production scenario is that you end up with a spaghetti of scripts, which are a nightmare to maintain and support. If Glue lives up to its promises, we'd pretty much get the best of all worlds - a flexible yet robust platform.
Hadoop Ecosystems

A single vendor for your IT platform gives you "one throat to choke" when it comes to support, which is usually a good thing. But if that vendor's platform is closed and proprietary it makes leaving it, or even just making use of alternative tools with it, difficult. One of the evangelical claims made about the new world of open source software is that the proliferation of open standards would spell an end to vendor lockin. I was interested to see during the course of this exercise a few examples where the big vendors subtly pushed you towards their own tool of choice, or away from an alternative.

For example, Amazon EMR makes available Presto as part of the default build, but to run the latest version of Impala you'd have to install it yourself. Whilst it is possible to install it yourself, of course, this added friction makes it less likely that people will. This friction increases when we consider that the software usually needs installing - and configuring - across multiple the nodes of the Hadoop cluster. Given an open field of tools all purporting to do the same or similar things, any impedance to using one over the other will count. The same argument could be made for the CDH distribution, in which Impala is front and center, and deploying Presto or Drill would be a manual exercise. Again, yes, installing it may be relatively trivial - but manual download and deployment across a cluster is never going to win out over a one-click deploying from a centralised management console.

This is a long way from any kind of vendor lockin, but it is worth bearing in mind that walls, albeit thin ones, are being built around these various gardens in the Hadoop ecosystem.

Summary

I hope you've found this series of article useful. You can find a list of them below. In the meantime, please do get in touch if you'd like to find out more about how Rittman Mead can help you on your data and analytics journey!

Categories: BI & Warehousing

ETL Offload with Spark and Amazon EMR - Part 4 - Analysing the Data

Rittman Mead Consulting - Tue, 2016-12-20 03:00

We recently did a project we did for a client, exploring the benefits of Spark-based ETL processing running on Amazon's Elastic Map Reduce (EMR) Hadoop platform. The proof of concept we ran was on a very simple requirement, taking inbound files from a third party, joining to them to some reference data, and then making the result available for analysis.

The background to the project is here, I showed here how I built up the prototype PySpark code on my local machine, and then here how it could be run on Amazon's EMR hadoop platform automatically.

In this article I'm going to discuss the options for analysing the data and producing reports from it.

Squeegee Your Third Eye

Where do we store data for analysis? Databases, right? That's what we've always done. Whether Oracle, SQL Server, or even Redshift - we INSERT, UPDATE, and SELECT our data in a database, and all is well and happy with the world.

But ... what if you didn't need a database per se to query your data?

One of the things I wanted to explore during this project was the feasibility and response times that "SQL on Hadoop" engines could bring. Hive is probably the most well known of these, with other options including Apache Impala (incubating), Apache Drill, Presto, and even Oracle's Big Data SQL. All these tools read data that is not stored in a proprietory database format but stored in an open format, such a simple text file, on open storage platform such as HDFS. More commonly, formats (also open, non-proprietory) which are optimised for performance such as Parquet or ORC are used.

The advantage of these is that they provide multiple options for working with your data, starting from the same base storage place (usually HDFS, or S3). If one tool has benefits over another in a particular processing or analytics scenario we have the option to switch, without having to do anything to the actual data at rest itself. Contrast this to the implicit assumption that the data starts in an RDBMS (such as Oracle). With the data in a proprietary database the only options for switching tools are which ones you use to submit workload (over JDBC/ODBC/OCI etc). If another database platform is better in a given use case you end up either duplicating the data, or re-platforming the data entirely.

So whilst the flexibility of SQL-on-Hadoop is very appealing, there are limitations to it currently, in areas including performance and levels of ANSI SQL support.

Throughout this evaluation, my considerations were:

  • Performance. The client we were doing this project for performs both batch querying as well as ad-hoc analytics
  • Complexity, in two areas:
    • Configuration and optimisation : The more configuration and careful tending that a platform needs, the greater the overall cost. Oracle may have its license implications compared to open-source software, but how to operate it for optimal performance is well known and documented. It's also an extremely mature product, having solved many of the problems that newer technologies are only just starting to realise, let alone solve.
    • Load process: Whilst the SQL-on-Hadoop engines don't "load" the data, they sometimes require it to be laid out in a particular pattern of folders, or in a particular format for optimal performance.
  • Compatibility. JDBC or ODBC interfaces are needed to be able to use the tool with BI tools such as OBIEE or Oracle's Data Visualization Desktop. As well as the interface, the SQL language support needs to be sufficient for analytical queries.

For an overview of SQL-on-Hadoop engines see this presentation from Greg Rahn. It's a couple of years old but pretty much still current bar the odd version and feature change.

Redshift

Redshift is not SQL-on-hadoop - it is a full-blown database. Specifically, it is a proprietory implementation of Postgres by Amazon, running as a service on their cloud. Just as you can provision an EMR cluster of any required size, you can do the same for Redshift. As your capacity and processing requirements change, you can scale your Redshift cluster up and down.

Redshift has both JDBC and ODBC drivers, making it accessible from both Data Visualization Desktop (supported) and OBIEE (works, but not supported).

To work with Redshift you can use a tool just as SQL WorkbenchJ, or the psql commandline tool. I installed the latter on my Mac using brew and brew install postgres.

With the processed data held on S3, loading it into Redshift is as simple as defining the table (with standard CREATE TABLE DDL), and then issuing a COPY command:

COPY ACME FROM 's3://foobar-bucket/acme_enriched/'
CREDENTIALS 'aws_access_key_id=XXXXXXXXXXXXXX;aws_secret_access_key=YYYYYYYYYYYY'
CSV
NULL AS 'null'
MAXERROR 100000
;

This takes any file under the given S3 path (and subfolders), parses it as a CSV, and loads it into the table. It presumes that the columns in the table are in the order that they are in the CSV file.

As a rough idea of load timings across several separate load jobs:

  • 2M rows in 10 minutes
  • 6M rows in 30 minutes
  • 23M rows in 1h18 minutes

Just like with the Spark coding, I didn't undertake any performance optimisations or 'good practices'. No sort keys or distribution configuration - just however it came by default, I used.

Out of the box, response times were pretty good - here's a sample of the queries. They're going across the same set of data (23M rows), stored on Redshift with no defined sort keys, distribution keys, etc - just however it comes out of the box with a vanilla CREATE TABLE DDL.

  • COUNT all records - 0.2 seconds

    dev=# select count(*) from acme3;
    count
    ----------
    23011785
    (1 row)


    Time: 225.053 ms

  • COUNT, GROUP BY - 2.0 seconds

    dev=# select country,site_category, count(*) from acme3 group by country,site_category;
    country | site_category  |  count
    ---------+----------------+---------
    GB      | Indirect       |  512519
    [...]
    (34 rows)


    Time: 2043.805 ms

  • COUNT, GROUP BY day (with DATE_TRUNC function) - 1.6 seconds

    dev=# select date_trunc('day',date_launched),country,count(*) from acme3 group by date_trunc('day',date_launched),country;
    date_trunc           | country | count
    ---------------------+---------+--------
    2016-01-01 00:00:00  | GB      |  24795
    [...]
    (412 rows)


    Time: 1625.590 ms

  • COUNT, GROUP BY week (with DATE_TRUNC function) - 3.8 seconds

    dev=# select date_trunc('week',date_launched),country,count(*) from acme3 group by date_trunc('week',date_launched),country;
    date_trunc           | country |  count
    ---------------------+---------+---------
    2016-01-18 00:00:00  | GB      | 1046417
    2016-01-25 00:00:00  | GB      |  945160
    2016-02-01 00:00:00  | GB      | 1204446
    2016-02-08 00:00:00  | GB      |  874694
    [...]
    (77 rows)


    Time: 3871.230 ms

  • COUNT, GROUP BY, WHERE, ORDER BY - 5.4 seconds

    dev=# select supplier, product, product_desc,count(*)  from acme3 where lower(product_desc) = 'beans' group by supplier,product,product_desc order by 4 desc limit 2;
    supplier             |      product    | product_desc | count
    ---------------------+-----------------+--------------+------
    ACME BEANS CO        | baked beans     | BEANS        |  2967
    BEANZ MEANZ          | beans + saus    | Beans        |  2347
    (2 rows)


    Time: 5427.035 ms

Hive (on Tez)

Hive enables you to run queries with SQL-like language (Hive QL) on data stored in various places including HDFS, and S3. It supports multiple formats of data, including simple delimited text files like CSV, and more advanced formats such as Parquet.

The version of Hive that I was using on EMR was automagically configured to use Tez as its execution engine, instead of the traditional map/reduce of the original Hadoop platform.

To query the data, simply define an EXTERNAL table. Why an EXTERNAL table? Well if you just define a TABLE, and then drop it ... it will also delete the underlying data. It's one of those syntax decisions that makes brutally logical sense, but burnt me and I'm sure has burnt many others. But, you won't do it again (or at least, not for a while).

CREATE EXTERNAL TABLE acme
(
product_desc STRING,
product STRING,
product_type STRING,
supplier STRING,
date_launched TIMESTAMP,
[...]
)
ROW FORMAT DELIMITED FIELDS TERMINATED BY ','
STORED AS TEXTFILE
LOCATION 's3://foobar-bucket/acme_enriched';

With the table defined you can test that it works using the LIMIT clause to only pull back some of the records:

hive> select product_desc,supplier,country from acme3 limit 5;
OK
Baked Beans       BEANZ MEANZ  GB
Tinned Tom      VEG CORP      GB
Tin Foil  FOIL SOLN   GB
Shreddies    CRUNCHYCRL     GB
Lemonade  FIZZ POP        GB

Whilst Hive technically enables you to query your data, the response times are so high that it's not even really a candidate for batch reporting.

Here's a couple of examples against a very small set of data, held in CSV format:

hive> select count(*) from acme;
21216
Time taken: 58.063 seconds, Fetched: 1 row(s)

hive> select country,count(*) from acme group by country;
US      21216
Time taken: 50.646 seconds, Fetched: 1 row(s)

Tez helpfully provides a progress report of queries, such as this one here - a simple count of all rows, on a much larger dataset (25M rows, CSV files). After seven minutes, I gave up - with 3% of the query complete

hive> select count(*) from acme3;
Query ID = hadoop_20161019112007_cca7d37f-c5af-47f2-9d7d-3187342fbbb3
Total jobs = 1
Launching Job 1 out of 1
Tez session was closed. Reopening...
Session re-established.


Status: Running (Executing on YARN cluster with App id application_1476873946157_0002)

----------------------------------------------------------------------------------------------
VERTICES      MODE        STATUS  TOTAL  COMPLETED  RUNNING  PENDING  FAILED  KILLED
----------------------------------------------------------------------------------------------
Map 1            container       RUNNING  107601       3740        5   103856       0       6
Reducer 2        container       RUNNING      1          0        1        0       0       0
----------------------------------------------------------------------------------------------
VERTICES: 00/02  [>>--------------------------] 3%    ELAPSED TIME: 442.36 s
----------------------------------------------------------------------------------------------

As with elsewhere in the exercise - I'm well aware that there are optimisations that could be made that could help with response time, such as storing the data in more optimal formats (ORC/Parquet) and layouts (partitioning) as well as compresing it.

Don't write Hive off though - the latest versions (being developed by Hortonworks, and not on EMR yet) are moving to use in-memory components and competing well against Impala.

Impala

Impala is Cloudera's open-source offering in the SQL-on-Hadoop space. I was hoping to try out Impala against the data in S3, especially given a recent post by Cloudera with some promising performance metrics. Unfortunately this was for Impala 2.6, and the only version available prebuilt on EMR was 1.2.4. Given time, it would have been possible to build my own CDH-based Hadoop cluster (using Director to automate it) with the latest version of Impala installed - but this will have to be for another day. The current Cloudera documentation also suggests that S3 is:

[...]more suitable for holding 'cold' data that is only queried occasionally

although it's not clear if that's still true in the context of the latest Impala S3 optimisations.

Presto

Presto is an open source project that originated at Facebook. Similar to Apache Drill (below), it can query across data (and federate the results) from multiple sources including Hive (and thus S3), MongoDB, MySQL, and even Kafka.

For Presto to query against the data in S3, you need to define the table in Hive first. Presto uses the Hive metastore to retrieve the definition of the table, and carries out the actual query execution itself. First, a simple smoke test that we can pull back some data:

$ presto-cli --catalog hive --schema default

presto:default> select product_desc,supplier,country from acme limit 5;
product_desc | supplier | country
-------+-------+---------
(0 rows)

Query 20161019_110919_00004_ev4hz, FINISHED, 1 node
Splits: 1 total, 1 done (100.00%)
0:01 [0 rows, 0B] [0 rows/s, 0B/s]

No data. Hmm. The exact same query against the same Hive table does return data. Turns out that Presto, by default, won't recursively query subfolders, whilst Hive, by default, does. After amending /etc/presto/conf.dist/catalog/hive.properties to set hive.recursive-directories=true and restarting Presto (sudo restart presto-server) on each EMR node, I then got data back:

presto:default> select count(*) from acme_latam;
_col0
---------
1993955
(1 row)

Query 20161019_200312_00003_xa352, FINISHED, 2 nodes
Splits: 44 total, 44 done (100.00%)
0:10 [1.99M rows, 642MB] [203K rows/s, 65.3MB/s]

This was against a 1.9M row dataset, held in CSV format. Run again soon after, and the response time was 3 seconds.

Querying a bigger set of data was slower - 4 minutes for 23M rows of data:

presto:default> select count(*) from acme3;
_col0
----------
23105948
(1 row)

Query 20161019_200815_00006_xa352, FINISHED, 2 nodes
Splits: 52,970 total, 52,970 done (100.00%)
4:04 [23.1M rows, 9.1GB] [94.8K rows/s, 38.2MB/s]

Same timing for doing a GROUP by on the data too:

presto:default> select country,site_category, count(*) from acme3 group by country,site_category;
country |  site_category     |  _col2
--------+--------------------+----------
GB      | Price comparison   |     146
GB      | DIRECT RETAIL      |   10903
[...]
Query 20161019_201443_00013_xa352, FINISHED, 2 nodes
Splits: 52,972 total, 52,972 done (100.00%)
4:54 [23.1M rows, 9.11GB] [78.6K rows/s, 31.7MB/s]

Presto includes a swanky web interface for seeing the status and execution of queries

Loading to ORC

Taking a brief detour into one of the most common recommendations for performance with Presto - storing data in ORC format.

First, in Hive, I created an ORC-stored table:

CREATE EXTERNAL TABLE acme_orc
(
product_desc STRING,
product STRING,
product_type STRING,
supplier STRING,
date_launched TIMESTAMP,
[...]
)
STORED AS ORC
LOCATION 's3://foobar-bucket/acme_orc/';

and then loaded a small sample of data:

hive> insert into acme_orc select * from acme_tst;

Querying it in Presto:

presto:default> select count(*) from acme_orc;
_col0
-------
29927
(1 row)

Query 20161019_113802_00008_ev4hz, FINISHED, 1 node
Splits: 2 total, 2 done (100.00%)
0:01 [29.9K rows, 1.71MB] [34.8K rows/s, 1.99MB/s]

With small volumes this was fine - 90 seconds to load 30k rows into an ORC-stored table, and a second to then query that from Presto with a count across all rows.

Loading 1.9M rows into an ORC-stored table took 30 minutes, and didn't actually (on the surface) speed things up. Caveat: this was a first pass at optimisation; there'll be a dozen settings and approaches to try out before any valid conclusions can be drawn from it:

  • COUNT GROUP BY from 1.9M rows, ORC - 3 seconds

    presto:default> select country,site_category, count(*) from acme_latam_orc group by country,site_category;
    country | site_category |  _col2
    ---------+---------------+---------
    LATAM   | null          | 1993955
    (1 row)


    Query 20161019_202206_00017_xa352, FINISHED, 2 nodes
    Splits: 46 total, 46 done (100.00%)
    0:03 [1.99M rows, 76.2MB] [790K rows/s, 30.2MB/s]

  • COUNT over 1.9M rows, CSV - 3 seconds

    presto:default> select country,site_category, count(*) from acme_latam group by country,site_category;
    country | site_category |  _col2
    ---------+---------------+---------
    LATAM   | null          | 1993955
    (1 row)


    Query 20161019_202241_00018_xa352, FINISHED, 2 nodes
    Splits: 46 total, 46 done (100.00%)
    0:03 [1.99M rows, 642MB] [575K rows/s, 185MB/s]

  • Function and filter, 1.9M rows, ORC

    presto:default> select count(*) from acme_latam_orc where lower(product_desc) = 'eminem';
    _col0
    -------
    2107
    (1 row)


    Query 20161019_202558_00019_xa352, FINISHED, 2 nodes
    Splits: 44 total, 44 done (100.00%)
    0:04 [1.99M rows, 76.2MB] [494K rows/s, 18.9MB/s]

  • Function and filter, 1.9M rows, CSV

    presto:default> select count(*) from acme_latam where lower(product_desc) = 'eminem';
    _col0
    -------
    2107
    (1 row)


    Query 20161019_202649_00020_xa352, FINISHED, 2 nodes
    Splits: 44 total, 44 done (100.00%)
    0:03 [1.99M rows, 642MB] [610K rows/s, 196MB/s]


Trying to load greater volumes (23M rows) to ORC was unsuccessful, due to memory issues with the Hive execution.

Status: Running (Executing on YARN cluster with App id application_1476905618527_0004)

----------------------------------------------------------------------------------------------
VERTICES      MODE        STATUS  TOTAL  COMPLETED  RUNNING  PENDING  FAILED  KILLED
----------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------
VERTICES: 00/00  [>>--------------------------] 0%    ELAPSED TIME: 13956.69 s
----------------------------------------------------------------------------------------------
Status: Failed
Application application_1476905618527_0004 failed 2 times due to AM Container for appattempt_1476905618527_0004_000002 exited with  exitCode: 255

In the Tez execution log was the error

Diagnostics: Container [pid=4642,containerID=container_1476905618527_0004_01_000001] is running beyond physical memory limits. Current usage: 1.0 GB of 1 GB physical memory used; 2.7 GB of 5 GB virtual memory used. Killing container.

With appropriate investigation (and/or smaller chunks of data loading) this could obviously be overcome, but for now halted any further investigation into ORC's usefulness. The other major area to investigate would be partitioning of the data.

A final note on performance - this blog does a comparison of Presto querying data held in S3 vs HDFS on EMR. HDFS on EMR is quicker, generally about 1.5 times or so - but you of course need your data loaded into HDFS on a running EMR cluster, whereas S3 is there on demand whenever you want it.

Drill

Apache Drill is another open-source tool, similar in concept to Presto, in that it enables querying across data held in multiple sources. I've written about it previously here and here. Whilst EMR has an option to provision a Drill cluster as part of an EMR build, it didn't seem to work when I tried it - and with Presto running I didn't spend the time digging into Drill. Given another time and project though, I'd definitely be looking to run it against this kind of data to see how it handled it. A recent thread on the Drill mailing list gave some interesting information on performance.

Athena

Amazon's Athena tool was announced at re:Invent 2016. Even though it was made GA after the client project being discussed here and therefore not evaluated, it is definitely worth mentioning. It provides "serverless" SQL querying of data held in S3. Under the covers it uses Presto (which is one of the tools I evaluated above). The benefit of Athena is that you wouldn't need to provision and configure actual servers to use Presto. You work with it through the web-based interface, or JDBC. This is a pretty big point to make - you can query your data, held in an open format, on demand, using SQL, without having to move it into a database or build a server to run a query engine.

Athena looks interesting, but one of the main things that struck me about it was that it is not something you would simply point at piles of data on S3 and build your analytics systems on. The cost is per query, and is currently $5 per TB scanned. FIVE DOLLARS, per terabyte of data SCANNED. Not retrieved. Scanned. So in order to not run up big AWS bills if you've got lots of data, you're going to need to do smart things to reduce the size of data scanned. Partitioning your data, and compressing it, will both help. As it happens, these are the things that are going to increase performance too, so it's not wasted effort. There's a good writeup here demonstrating Athena, and the difference that using an appropriate storage format for the data makes to performance and volumes of data scanned (and thus cost).

The cost consideration is a crucial point, because it means that data 'engineering' is still needed in any system you plan to build Athena on top of as the query engine. Sure, you can use it for adhoc 'fishing' expeditions in your 'data lake' (sorry....). Here the benefit of sifting through vast and disparate data without having to transform and/or load it into a queryable form first will probably outweigh the ad-hoc costs (remember : $5 per TB scanned). But as I said, if you're engineering Athena into your system as the SQL engine of top of data at rest in S3, you'll want to invest in the necessary wrangling in order to store the data (a) partitioned and (b) compressed.

You can read more about Athena here.

Front End Tools

All of the exploration so far has been from the commandline, but users want their data visually. The client for whom we were doing this work currently use OBIEE and BI Publisher to deliver the data. Both Redshift and Presto have JDBC and ODBC drivers, which means that they should work with OBIEE (although neither are on the supported databases list). Oracle's Data Visualization Desktop tool is also of interest here, bringing with it native support for both Redshift and Presto (beta).

A tool that we didn't examine, but is directly relevant given the Amazon context, is Quicksight. Currently in closed-preview Released in mid-November 2017, this is a cloud-based tool that enables querying of data in many sources including Redshift -- but also S3 itself.

Summary

For interactive analysis, Redshift performed well straight off. However, with some of the in-memory capabilities of the SQL-on-Hadoop engines, and the appeal of simply provisioning compute to query data held on S3 when required, it would be interesting to spend some time digging into the recommended optimisations and design patterns to see just how fast the querying could be.

Since all the query engines considered support JDBC, and any respectable front-end tool can query JDBC, we're not constrained in the choice of one by the other. Hooray for open standards enabling optimal choice and pairing of technologies! I liked using Oracle DV Desktop as it's a simple install and quick to get visualisations out of. Ultimately the choice of tool would come down to factors including complexity of requirements, scale of deployment - and of course, cost.

In the final article in this series we'll take a recap over the whole project, and look at some of the broader points of interest to draw from it.

Categories: BI & Warehousing

ETL Offload with Spark and Amazon EMR - Part 3 - Running pySpark on EMR

Rittman Mead Consulting - Mon, 2016-12-19 03:00

In the previous articles (here, and here) I gave the background to a project we did for a client, exploring the benefits of Spark-based ETL processing running on Amazon's Elastic Map Reduce (EMR) Hadoop platform. The proof of concept we ran was on a very simple requirement, taking inbound files from a third party, joining to them to some reference data, and then making the result available for analysis.

I showed here how I built up the prototype PySpark code on my local machine, using Docker to quickly and easily make available the full development environment needed.

Now it's time to get it running on a proper Hadoop platform. Since the client we were working with already have a big presence on Amazon Web Services (AWS), using Amazon's Hadoop platform made sense. Amazon's Elastic Map Reduce, commonly known as EMR, is a fully configured Hadoop cluster. You can specify the size of the cluster and vary it as you want (hence, "Elastic"). One of the very powerful features of it is that being a cloud service, you can provision it on demand, run your workload, and then shut it down. Instead of having a rack of physical servers running your Hadoop platform, you can instead spin up EMR whenever you want to do some processing - to a size appropriate to the processing required - and only pay for the processing time that you need.

Moving my locally-developed PySpark code to run on EMR should be easy, since they're both running Spark. Should be easy, right? Well, this is where it gets - as we say in the trade - "interesting". Part of my challenges were down to the learning curve in being new to this set of technology. However, others I would point to more as being examples of where the brave new world of Big Data tooling becomes less an exercise in exciting endless possibilities and more stubbornly Googling errors due to JAR clashes and software version mismatches...

Provisioning EMR

Whilst it's possible to make the entire execution of the PySpark job automated (including the provisioning of the EMR cluster itself), to start with I wanted to run it manually to check each step along the way.

To create an EMR cluster simply login to the EMR console and click Create

I used Amazon's EMR distribution, configured for Spark. You can also deploy a MapR-based hadoop platform, and use the Advanced tab to pick and mix the applications to deploy (such as Spark, Presto, etc).

The number and size of the nodes is configured here (I used the default, 3 machines of m3.xlarge spec), as is the SSH key. The latter is very important to get right, otherwise you won't be able to connect to your cluster over SSH.

Once you click Create cluster Amazon automagically provisions the underlying EC2 servers, and deploys and configures the software and Hadoop clustering across them. Anyone who's set up a Hadoop cluster will know that literally a one-click deploy of a cluster is a big deal!

If you're going to be connecting to the EMR cluster from your local machine you'll want to modify the security group assigned to it once provisioned and enable access to the necessary ports (e.g. for SSH) from your local IP.

Deploying the code

I developed the ETL code in Jupyter Notebooks, from where it's possible to export it to a variety of formats - including .py Python script. All the comment blocks from the Notebook are carried across as inline code comments.

To transfer the Python code to the EMR cluster master node I initially used scp, simply out of habit. But, a much more appropriate solution soon presented itself - S3! Not only is this a handy way of moving data around, but it comes into its own when we look at automating the EMR execution later on.

To upload a file to S3 you can use the S3 web interface, or a tool such as Cyberduck. Better, if you like the command line as I do, is the AWS CLI tools. Once installed, you can run this from your local machine:

aws s3 cp Acme.py s3://foobar-bucket/code/Acme.py

You'll see that the syntax is pretty much the same as the Linux cp comand, specifying source and then destination. You can do a vast amount of AWS work from this command line tool - including provisioning EMR clusters, as we'll see shortly.

So with the code up on S3, I then SSH'd to the EMR master node (as the hadoop user, not ec2-user), and transfered it locally. One of the nice things about EMR is that it comes with your AWS security automagically configred. Whereas on my local machine I need to configure my AWS credentials in order to use any of the aws commands, on EMR the credentials are there already.

aws s3 cp s3://foobar-bucket/code/Acme.py ~

This copied the Python code down into the home folder of the hadoop user.

Running the code - manually

To invoke the code, simply run:

spark-submit Acme.py

A very useful thing to use, if you aren't already, is GNU screen (or tmux, if that's your thing). GNU screen is installed by default on EMR (as it is on many modern Linux distros nowadays). Screen does lots of cool things, but of particular relevance here is it lets you close your SSH connection whilst keeping your session on the server open and running. You can then reconnect at a later time back to it, and pick up where you left off. Whilst you're disconnected, your session is still running and the work still being processed.

From the Spark console you can monitor the execution of the job running, as well as digging into the details of how it undertakes the work. See the EMR cluster home page on AWS for the Spark console URL

Problems encountered

I've worked in IT for 15 years now (gasp). Never has the phrase "The devil's in the detail" been more applicable than in the fast-moving world of big data tools. It's not suprising really given the staggering rate at which code is released that sometimes it's a bit quirky, or lacking what may be thought of as basic functionality (often in areas such as security). Each of these individual points could, I suppose, be explained away with a bit of RTFM - but the nett effect is that what on paper sounds simple took the best part of half a day and a LOT of Googling to resolve.

Bear in mind, this is code that ran just fine previously on my local development environment.

When using SigV4, you must specify a 'host' parameter
boto.s3.connection.HostRequiredError: BotoClientError: When using SigV4, you must specify a 'host' parameter.

To fix, switch

conn_s3 = boto.connect_s3()

for

conn_s3 = boto.connect_s3(host='s3.amazonaws.com')

You can see a list of endpoints here.

boto.exception.S3ResponseError: S3ResponseError: 400 Bad Request

Make sure you're specifying the correct hostname (see above) for the bucket's region. Determine the bucket's region from the S3 control panel, and then use the endpoint listed here.

Error: Partition column not found in schema

Strike this one off as bad programming on my part; in the step to write the processed file back to S3, I had partitionBy='', in the save function

duplicates_df.coalesce(1).write.save(full_uri,
                                     format='com.databricks.spark.csv',
                                     header='false',
                                     partitionBy='',
                                     mode='overwrite')

This, along with the coalesce (which combined all the partitions down to a single one) were wrong, and fixed by changing to:

duplicates_df.write.save(full_uri,
                         format='com.databricks.spark.csv',
                         header='false',
                         mode='overwrite')
Exception: Python in worker has different version 2.6 than that in driver 2.7, PySpark cannot run with different minor versions

To get the code to work on my local Docker/Jupyter development environment, I set an environment variable as part of the Python code to specify the Python executable:

os.environ['PYSPARK_PYTHON'] = '/usr/bin/python2'

I removed this (along with all the PYSPARK_SUBMIT_ARGS) and the code then ran fine.

Timestamp woes

In my original pySpark code I was letting it infer the schema from the source, which included it determining (correctly) that one of the columns was a timestamp. When it wrote the resulting processed file, it wrote the timestamp in a standard format (YYYY-MM-DD HH24:MI:SS). Redshift (of which more in the next article) was quite happy to process this as a timestamp, because it was one.
Once I moved the pySpark code to EMR, the Spark engine moved from my local 1.6 version to 2.0.0 - and the behaviour of the CSV writer changed. Instead of the format before, it switched to writing the timestamp in epoch form, and not just that but microseconds since epoch. Whilst Redshift could cope with epoch seconds, or milliseconds, it doesn't support microseconds, and the load job failed

Invalid timestamp format or value [YYYY-MM-DD HH24:MI:SS]

and then

Fails: Epoch time copy out of acceptable range of [-62167219200000, 253402300799999]

Whilst I did RTFM, it turns out that I read the wrong FM, taking the latest (2.0.1) instead of the version that EMR was running (2.0.0). And whilst 2.0.1 includes support for specifying the output timestampFormat, 2.0.0 doesn't.

In the end I changed the Spark job to not infer the schema, and so treat the timestamp as a string, thus writing it out in the same format. This was a successful workaround here, but if I'd needed to do some timestamp-based processing in the Spark job I'd have had to find another option.

Success!

I now had the ETL job running on Spark on EMR, processing multiple files in turn. Timings were approximately five minutes to process five files, half a million rows in total.

One important point to bear in mind through all of this is that I've gone with default settings throughout, and not made any effort to optimise the PySpark code. At this stage, it's simply proving the end-to-end process.

Automating the ETL

Having seen that the Spark job would run successfully manually, I now went to automate it. It's actually very simple to do. When you launch an EMR cluster, or indeed even if it's running, you can add a Step, such as a Spark job. You can also configure EMR to terminate itself once the step is complete.

From the EMR cluster create screen, switch to Advanced. Here you can specify exactly which applications you want deployed - and what steps to run. Remember how we copied the Acme.py code to S3 earlier? Now's when it comes in handy! We simply point EMR at the S3 path and it will run that code for us - no need to do anything else. Once the code's finished executing, the EMR cluster will terminate itself.

After testing out this approach successfully, I took it one step further - command line invocation. AWS make this ridiculously easier, because from the home page of any EMR cluster (running or not) there is a button to click which gives you the full command to run to spin up another cluster with the exact same configuration

This gives us a command like this:

    aws emr create-cluster \
    --termination-protected \
    --applications Name=Hadoop Name=Spark Name=ZooKeeper \
    --tags 'owner=Robin Moffatt' \
    --ec2-attributes '{"KeyName":"Test-Environment","InstanceProfile":"EMR_EC2_DefaultRole","AvailabilityZone":"us-east-1b","EmrManagedSlaveSecurityGroup":"sg-1eccd074","EmrManagedMasterSecurityGroup":"sg-d7cdd1bd"}' \
    --service-role EMR_DefaultRole \
    --enable-debugging \
    --release-label emr-5.0.0 \
    --log-uri 's3n://aws-logs-xxxxxxxxxx-us-east-1/elasticmapreduce/' \
    --steps '[{"Args":["spark-submit","--deploy-mode","cluster","s3://foobar-bucket/code/Acme.py"],"Type":"CUSTOM_JAR","ActionOnFailure":"TERMINATE_CLUSTER","Jar":"command-runner.jar","Properties":"","Name":"Acme"}]' \
    --name 'Rittman Mead Acme PoC' \
    --instance-groups '[{"InstanceCount":1,"InstanceGroupType":"MASTER","InstanceType":"m3.xlarge","Name":"Master instance group - 1"},{"InstanceCount":2,"InstanceGroupType":"CORE","InstanceType":"m3.xlarge","Name":"Core instance group - 2"}]' \
    --region us-east-1 \
    --auto-terminate

This spins up an EMR cluster, runs the Spark job and waits for it to complete, and then terminates the cluster. Logs written by the Spark job get copied to S3, so that even once the cluster has been shutdown, the logs can still be accessed. Seperation of compute from storage - it makes a lot of sense. What's the point having a bunch of idle CPUs sat around just so that I can view the logs at some point if I want to?

The next logical step for this automation would be the automatic invocation of above process based on the presence of a defined number of files in the S3 bucket. Tools such as Lambda, Data Pipeline, and Simple Workflow Service are all ones that can help with this, and the broader management of ETL and data processing on AWS.

Spot Pricing

You can save money further with AWS by using Spot Pricing for EMR requests. Spot Pricing is used on Amazon's EC2 platform (on which EMR runs) as a way of utilising spare capacity. Instead of paying a fixed (higher) rate for some server time, you instead 'bid' at a (lower) rate and when the demand for capacity drops such that the spot price does too and your bid price is met, you get your turn on the hardware. If the spot price goes up again - your server gets killed.

Why spot pricing makes sense on EMR particularly is that Hadoop is designed to be fault-tolerant across distributed nodes. Whilst pulling the plug on an old-school database may end in tears, dropping a node from a Hadoop cluster may simply mean a delay in the processing whilst the particular piece of (distributed) work is restarted on another node.

Summary

We've developed out simple ETL application, and got it running on Amazon's EMR platform. Whilst we used AWS because it's the client's platform of choice, in general there's no reason we couldn't take it and run it on another Hadoop platform. This could be a Hadoop platform such as Oracle's Big Data Cloud Service, Cloudera's CDH running on Oracle's Big Data Appliance, or simply a self-managed Hadoop cluster on commodity hardware.

Processing time was in the region of 30 minutes to process 2M rows across 30 files, and in a separate batch run 3.8 hours to process 283 files of around 25M rows in total.

So far, the data that we've processed is only sat in a S3 bucket up in the cloud.

In the next article we'll look at what the options are for actually analysing the data and running reports against it.

Categories: BI & Warehousing

ETL Offload with Spark and Amazon EMR - Part 2 - Code development with Notebooks and Docker

Rittman Mead Consulting - Fri, 2016-12-16 03:00

In the previous article I gave the background to a project we did for a client, exploring the benefits of Spark-based ETL processing running on Amazon's Elastic Map Reduce (EMR) Hadoop platform. The proof of concept we ran was on a very simple requirement, taking inbound files from a third party, joining to them to some reference data, and then making the result available for analysis. The primary focus was proving the end-to-end concept, with future iterations focussing on performance and design optimisations.

Here we'll see how I went about building up the ETL process.

Processing Overview

The processing needed to iterate over a set of files in S3, and for each one:

  • Loads the file from S3
  • Determines region from filename, and adds as column to data
  • Deduplicates it
  • Writes duplicates to separate file
  • Loads sites reference data
  • Extracts domain from URL string
  • Joins facts with sites on domain
  • Writes resulting file to S3

Once the data is processed and landed back to S3, we can run analytics on it. See subsequent articles for discussion of Redshift vs in-place querying with tools such as Presto.

Ticking All The Cool-Kid Boxes - Spark AND Notebooks AND Docker!

Whilst others in Rittman Mead have done lots of work with Spark, I myself was new to it, and needed a sandpit in which I could flail around without causing any real trouble. Thus I set up a nice self-contained development environment on my local machine, using Docker to provision and host it, and Jupyter Notebooks as the interface.

Notebooks

In a world in which it seems that there are a dozen cool new tools released every day, Interactive Notebooks are for me one of the most significant of recent times for any developer. They originate in the world of data science, where taking the 'science' bit at its word, data processing and exploration is written in a self-documenting manner. It makes it possible to follow how and why code was written, what the output at each stage was -- and to run it yourself too. By breaking code into chunks it makes it much easier to develop as well, since you can rerun and perfect each piece before moving on.

Notebooks are portable, meaning that you can work with them in one system, and then upload them for others to learn from and even import to run on their own systems. I've shared a simplified version of the notebook that I developed for this project on gist here, and you can see an embedded version of it at the end of this article.

The two most common are Apache Zeppelin, and Jupyter Notebooks (previously known as iPython Notebooks). Jupyter is the one I've used previously, and stuck with again here. To read more about notebooks and see them in action, see my previous blog posts here and here.

Docker

Plenty's been written about Docker. In a nutshell, it is a way to provision and host a set of self-contained software. It takes the idea of a virtual machine (such as VMWare, or VirtualBox), but without having to install an OS, and then the software, and then configure it all yourself. You simply take a "Dockerfile" that someone has prepared, and run it. You can create copies, or throwaway and start again, from a single command. I ran Docker on my Mac through Kitematic, and natively on my home server.

There are prebuilt Docker configuration files for lots of software (including Oracle and OBIEE!), and I found one that includes Spark, PySpark, and Jupyter - perfect!

To launch it, you simply enter:

docker run -d -p 18888:8888 jupyter/all-spark-notebook

This downloads all the necessary Docker files etc - you don't need anything local first, except Docker.

I ran it with an additional flag, -v, configuring it to use a folder on my local machine to store the work that I created. By default all files reside within the Docker image itself - and get deleted when you delete the Docker instance.

docker run -d -p 18888:8888 -v /Users/rmoff/all-spark-notebook:/home/jovyan/work jupyter/all-spark-notebook

You can also run the container with an additional flag, GRANT_SUDO, so that the guest user can run sudo commands within it. To do this include -e GRANT_SUDO=yes --user root:

docker run -d -p 18888:8888 -e GRANT_SUDO=yes --user root -v /Users/rmoff/all-spark-notebook:/home/jovyan/work jupyter/all-spark-notebook

With the docker container running, you can access Jupyter notebooks on the port exposed in the command used to launch it (18888)

Getting Started with Jupyter

From Jupyter's main page you can see the files within the main folder (see above for how you can map this to a local folder on the machine hosting Docker). Using the New menu in the top-right you can create:

  • Folders and edit Text files
  • A terminal
  • A notebook, running under one of several different 'Kernels' (host interpreters and environments)

The ability to run a terminal from Jupyter is very handy - particularly on Docker. Docker by its nature isn't really designed for interaction within the container itself. It's the point of Docker in a way, that it provisions and configures all the software for you. You can use Docker to run a bash shell directly, but it's more fiddly than just using the Jupyer Terminal.

I used a Python 2 notebook for my work; with this Docker image you also have the option of Python 3, Scala, and R.

Developing the Spark job

With my development environment up and running, I set to writing the Spark job. Because I'm already familiar with Python I took advantage of PySpark. Below I describe the steps in the processing and how I achieved them.

Environment Preparation

Define AWS parameters:

access_key='XXXXXXXXXXXXXXXXXX
secret='YYYYYYYYYYYYYYYYY'
bucket_name='foobar-bucket'

Set up the PySpark environment, including necessary JAR files for accessing S3 from Spark:

import os
os.environ['AWS_ACCESS_KEY_ID'] = access_key
os.environ['AWS_SECRET_ACCESS_KEY'] = secret
os.environ['PYSPARK_PYTHON'] = '/usr/bin/python2'
os.environ['PYSPARK_SUBMIT_ARGS'] = '--packages org.apache.hadoop:hadoop-aws:2.7.1,com.amazonaws:aws-java-sdk-pom:1.10.34,com.databricks:spark-csv_2.11:1.3.0 pyspark-shell'

Create a spark context:

import pyspark
sc = pyspark.SparkContext('local[*]')
sqlContext = pyspark.SQLContext(sc)

Import Python libraries

from pyspark.sql.functions import udf
from pyspark.sql.functions import lit
import boto
from urlparse import urlsplit

Note that to install python libraries not present on the Docker image (such as boto, which is used for accessing AWS functionality from within Python) you can run from a Jupyter Terminal:

/opt/conda/envs/python2/bin/pip install boto

On other platforms the path to pip will vary, but the install command is the same

Loading Data from S3

The source data comes from an S3 "bucket", on which there can be multiple "keys". Buckets and keys roughly translate to "disk drive" and "file".

We use the boto library to interact with S3 to find a list of files ('keys') matching the pattern of source files that we want to process.

Connect to the bucket
conn_s3 = boto.connect_s3()
bucket = conn_s3.get_bucket(bucket_name)
Iterate over the bucket contents

This bit would drive iterative processing over multiple input files; for now it just picks the last file on the list (acme_file getting set on each iteration and so remaining set after the loop)

contents=bucket.list(prefix='source_files/')
for f in contents:
    print f.name
    print f.size
    acme_file = f.name
print "\n\n--\nFile to process: %s" % acme_file
Read the CSV from S3 into Spark dataframe

The Docker image I was using was running Spark 1.6, so I was using the Databricks CSV reader; in Spark 2 this is now available natively. The CSV file is loaded into a Spark data frame. Note that Spark is reading the CSV file directly from a S3 path.

full_uri = "s3n://{}/{}".format(bucket_name, acme_file)
print full_uri
s3n://foobar-bucket/source_files/acme_GB_20160803_100000.csv
acme_df = sqlContext.read.load(full_uri,
                                  format='com.databricks.spark.csv',
                                  header='true',
                                  inferSchema='true')

acme_df.printSchema()
root
 |-- product: string (nullable = true)
 |-- product_desc: string (nullable = true)
 |-- product_type: string (nullable = true)
 |-- supplier: string (nullable = true)
 |-- date_launched: timestamp (nullable = true)
 |-- position: string (nullable = true)
 |-- url: string (nullable = true)
 |-- status: string (nullable = true)
 |-- reject_reason: string (nullable = true)

The above shows the schema of the dataframe; Spark has infered this automagically from the column headers (for the column names), and then the data types within (note that it has correctly detected a timestamp in the date_launched column)

Add country column to data frame

The filename of the source data includes a country field as part of it. Here we use this regular expression to extract it:

filename=os.path.split(acme_file)[1]
import re
m=re.search('acme_([^_]+)_.+$', filename)
if m is None:
    country='NA'
else:
    country=m.group(1)

print "Country determined from filename '%s' as : %s" % (filename,country)
Country determined from filename 'acme_GB_20160803_100000.csv' as : GB

With the country stored in a variable, we add it as a column to the data frame:

Note that the withColumn function requires a Column value, which we create here using the PySpark lit function that was imported earlier on.

acme_df=acme_df.withColumn('country',lit(country))

acme_df.printSchema()
root
 |-- product: string (nullable = true)
 |-- product_desc: string (nullable = true)
 |-- product_type: string (nullable = true)
 |-- supplier: string (nullable = true)
 |-- date_launched: timestamp (nullable = true)
 |-- position: string (nullable = true)
 |-- url: string (nullable = true)
 |-- status: string (nullable = true)
 |-- reject_reason: string (nullable = true)
 |-- country: string (nullable = false)

Note the new column added to the end of the schema.

Deduplication

Now that we've imported the file, we need to deduplicate it to remove entries with the same value for the url field. Here I'm created a second dataframe based on a deduplication of the first, using the PySpark native function dropDuplicates:

acme_deduped_df = acme_df.dropDuplicates(['url'])

For informational purposes we can see how many records are in the two dataframes, and determine how many duplicates there were:

orig_count = acme_df.count()
deduped_count = acme_deduped_df.count()
print "Original count: %d\nDeduplicated count: %d\n\n" % (orig_count,deduped_count)
print "Number of removed duplicate records: %d" % (orig_count - deduped_count)
Original count: 97974
Deduplicated count: 96706


Number of removed duplicate records: 1268
Deriving Domain from URL

One of the sets of reference data is information about the site on which the product was viewed. To bring these sets of attributes into the main dataset we join on the domain itself. To perform this join we need to derive the domain from the URL. We can do this using the python urlsplit library, as seen in this example:

sample_url = 'https://www.rittmanmead.com/blog/2016/08/using-apache-drill-with-obiee-12c/'

print sample_url
print urlsplit(sample_url).netloc
https://www.rittmanmead.com/blog/2016/08/using-apache-drill-with-obiee-12c/
www.rittmanmead.com

We saw above that to add a column to the dataframe the withColumn function can be used. However, to add a column that's based on another (rather than a literal, which is what the country column added above was) we need to use the udf function. This generates the necessary Column field based on the urlsplit output for the associated url value.

First we define our own function which simply applies urlsplit to the value passed to it

def getDomain(value):
    return urlsplit(value).netloc

and then a UDF based on it:

udfgetDomain = udf(getDomain)

Finally, apply this to a third version of the dataframe:

acme_deduped_df_with_netloc = acme_deduped_df.withColumn("netloc", udfgetDomain(acme_deduped_df.url))
Joining to Second Dataset

Having preparing the primary dataset, we'll now join it to the reference data. The source of this is currently an Oracle database. For simplicity we're working with a CSV dump of the data, but PySpark supports the option to connect to sources with JDBC so we could query it directly if required.

First we import the sites reference data CSV:

sites_file = "s3n://{}/{}".format('foobar-bucket', 'sites.csv')
sites_df = sqlContext.read.load(sites_file,
                                  format='com.databricks.spark.csv',
                                  header='true',
                                  inferSchema='true')

Then some light data cleansing with the filter function to remove blank SITE entries, and blank SITE_RETAIL_TYPE entries:

sites_pruned_df = sites_df.filter("NOT (SITE ='' OR SITE_RETAIL_TYPE = '')")

Now we can do the join itself. This joins the original dataset (acme_deduped_df_with_netloc) with the sites reference data (sites_pruned_df), using a left outer join.

merged_df = acme_deduped_df_with_netloc.join(sites_pruned_df,acme_deduped_df_with_netloc.netloc == sites_pruned_df.SITE, 'left_outer')

Using the filter function and show we can inspect the dataset for matches, and misses:

First 10 matched:

merged_df.filter(merged_df.ID.isNotNull()).select('date_launched','url','netloc','ID','SITE','SITE_RETAIL_TYPE').show(10)

First 10 unmatched:

merged_df.filter(merged_df.ID.isNull()).select('date_launched','url','netloc','ID','SITE','SITE_RETAIL_TYPE').show(10)
Write Back to S3

The finished dataset is written back to S3. As before, we're using the databricks CSV writer here but in Spark 2 would be doing it natively:

acme_enriched_filename='acme_enriched/%s' % filename.replace('.csv','')
full_uri = "s3n://{}/{}".format(bucket_name, acme_enriched_filename)
print 'Writing enriched acme data to %s' % full_uri
merged_df.write.save(path=full_uri,
                     format='com.databricks.spark.csv',
                     header='false',
                     nullValue='null',
                     mode='overwrite')
Summary

With the above code written, I could process input files in a couple of minutes per 30MB file. Bear in mind two important constraints to this performance:

  1. I was working with data residing up in the Amazon Cloud, with the associated network delay in transferring to and from it

  2. The processing was taking place on a single node Spark deployment (on my laptop, under virtualisation), rather than the multiple-node configuration typically seen.

The next steps, as we'll see in the next article, were to port this code up to Amazon Elastic Map Reduce (EMR). Stay tuned!
